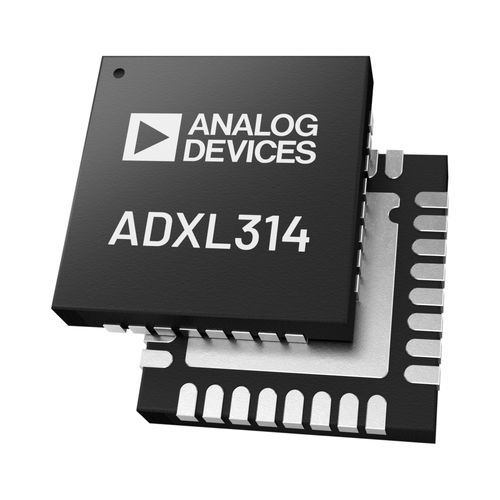

3-axis accelerometer module ADXL314

digital output

The ADXL314 is a ±200 g range, 13-bit resolution, 3-axis digital accelerometer. The digital output data is formatted as 16-bit, twos complement data and is accessible through a serial peripheral interface (SPI), 3-wire or 4-wire, or an I2C digital interface. An integrated memory management system with a 32 level, first in, first out (FIFO) buffer can store data to minimize host processor activity and lower overall system power consumption. Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at low power dissipation, typically 65 μA for VS = 2.5 V at a 100 Hz output data rate (ODR). The ADXL314 is supplied in a small, thin 5 mm × 5 mm × 1.45 mm, 32-lead LFCSP. APPLICATIONS Tire and battery pack monitoring High force event detection Features ±200 g measurement range Low power: 170 μA in measurement mode and 17 μA in standby mode at VS = 2.5 V (typical) User selectable bandwidth up to 3200 Hz ODR Fixed 13-bit output resolution Supply voltage range: 2.0 V to 3.6 V Embedded memory management system with FIFO technology minimizes host processor load Shock event detection Activity/inactivity monitoring SPI (3- or 4-wire) and I2C digital interfaces Wide temperature range: −40 to +125°C 10,000 g shock survival Pb free and RoHS compliant Small and thin: 32-lead, 5 mm × 5 mm × 1.45 mm LFCSP AEC-Q100 qualified for automotive applications
