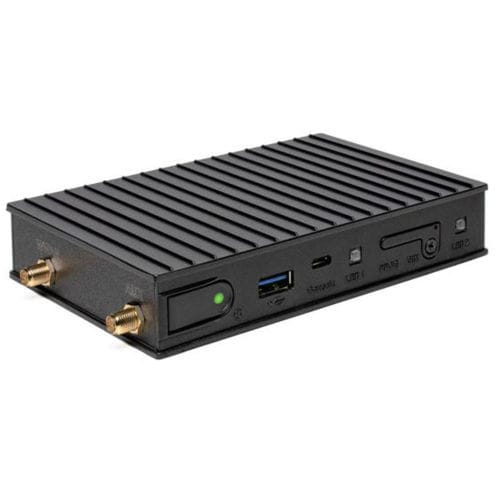

Industrial gateway IOT-GATE-iMX8PLUS

IoTwirelessWiFi

IOT-GATE-iMX8PLUS is a powerful, modular and versatile fanless Industrial IoT Gateway PC designed for IoT control and monitoring applications. It features extensive wireless and wired connectivity and industrial build quality and reliability. Built on NXP i.MX8M-Plus quad-core processor Up to 8GB RAM and 128GB eMMC Industrial temperature range of -40°C to +80°C Input voltage range of 8V to 36V and PoE client Supports DIN-rail and wall mounting Custom I/O expansion boards Specifications CPU Model - AI/ML Neural Processing Unit, up to 2.3 TOPS Real Time Co-Processor - ARM Cortex-M7, 800Mhz Storage - Up to 128GB eMMC flash, soldered on-board GPU and video - GC7000UL 1080p60 HEVC/H.265, AVC/H.264 AN - 2x 1000Mbps Ethernet portx, RJ45 connectors WIFI & Bluetooth - 802.11ax WiFi and Bluetooth 5.3 BLE Implemented with Intel WiFi 6E AX210 module 2x 2.4GHz / 5GHz rubber duck antennas GNSS - GPS Implemented with Quectel EC25 module SB - 2x USB2.0 ports, type-A connectors (back panel) 1x USB3.0 port, type-A connector (front panel)
