Compact housing 1327

rectangularplasticbattery

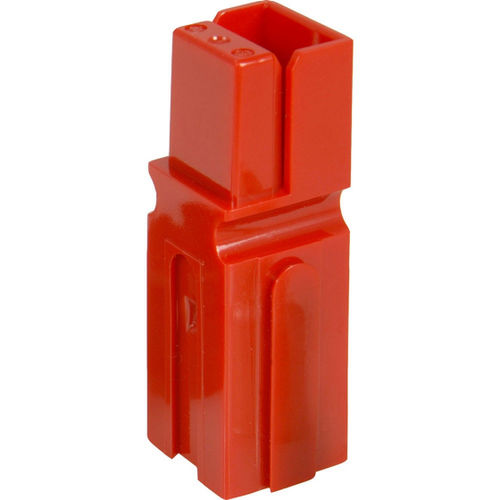

Powerpole® Connector Housing, Red, Up to 45 Amps • The second to largest Powerpole® housing can be used with wire contacts for up to 1/0 AWG [50mm²] or busbar contacts. • PP120 series Powerpole® housings are designed to accommodate up to 1/0 (50 mm²) wires and handle high currents up to 240 amps. • Reducing bushings allow PP120 to accept down to #8 (10 mm²) wires. • Multiple colors of stackable housings combine with low resistance flat wiping technology to offer powerful connection capability. • Large Wire Range Accommodates up to 1/0 (50mm²) Wire Reducing bushings allow as small as #8 (10 mm²) wire to be used • Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps • UL Rated for Hot Plugging up to 60 Amps • Great for battery or other applications where the ability to interrupt circuits is required
