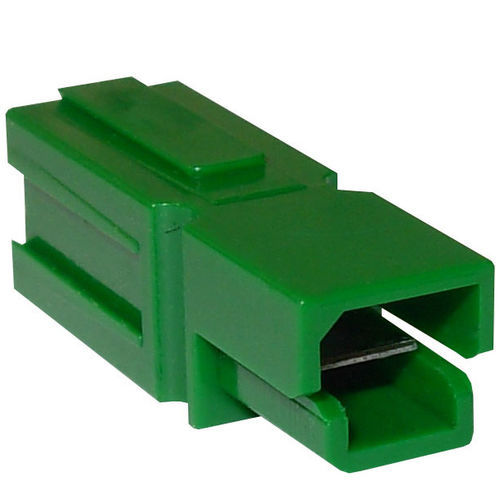

Rectangular housing POWERPOLE® 15-45 45A

plasticfor connectorscompact

Green housings are keyed to prevent accidental mating with standard or finger proof Powerpole® housings • PP15-45 series are the smallest Powerpole® housings. They can be used for wire-to-wire or wire-to-board applications. Wire sizesfrom #20 AWG (0.75 mm²) to #10 (6 mm²) offer power capabilitiesup to 55 amps per pole. Finger proof housings and the ability to incorporate first-mate last-break ground connectors enhance the capabilities of this Powerpole® series.High Power Density • Up to 55 amps in a compact footprintWire-to Wire & Wire-to-Board Configurations • Wire & PCB contacts can be used in the same housingsFinger Proof Housings Available • Protects against accidental contact with live circuits
