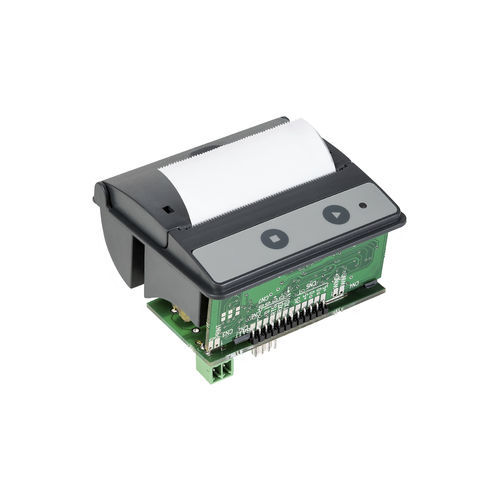

Direct thermal label printer MTH-2500

for industrial applicationsOEM

The MTH-2500 printer is a miniature OEM ticket printer, very easy to integrate, thermal technology. It is available with a 5V or 9 to 40V power supply. Many possible interfaces such as RS232, USB, Ethernet, RS422, Modbus, etc. Details • - Small size • - ABS Dark grey plastic housing • - Easyloading printing module • - Fast printing up to 50 mm/s with 200 dpi • - 24 or 42 characters per line depending of the selected font • - 2 different fonts • - Paper feed button • - RS232C or TTL Interfaces • - LED indicator on front panel • - 5V DC power supply or 9 to 40V DC on an Add-on card • - Paper-end detection • - Integration depth : 27 mm • - Interfaces o - Serial RS232C o - Serial TTL o - USB 2.0, Printer class o - Parallel interface on an Add-on Card o - Ethernet Raw TCP/IP (for printing on the network from a computer with a driver) o - Ethernet Modbus over TCP (for printing from a Modbus terminal) o - RS422/RS485 (In reception only) or RS422 with Modbus over serial • - 5V DC power supply or 9 to 40V DC on an Add-on card • - 8Kb Flash memory for Downloading a logo • - It can be printed by closing a TTL input • - Software controls o - MTH: Andig proprietary language  - Print texts, diagrams, graphic curves, bar codes o - PCL Raw compatibility (graphic)  - Supported compressions: No compression, Run Length, Tiff4, Delta Row  - Adjustable horizontal and vertical reduction to fit the printout in the paper width
