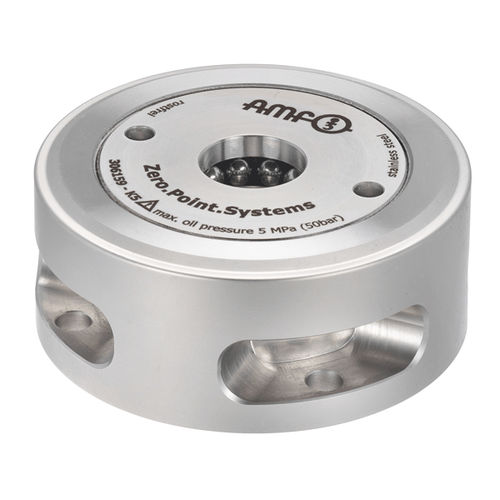

Countertop zero-point clamping system 6370AARH series

hydraulicquickround

Surface-mounted clamping module, round Hydraulic opening. Opening operating pressure: min. 50 bar - max. 60 bar Cover and piston hardened. Repeatability < 0.005 mm. Application: Zero-point clamping system for set-up-time-optimized clamping with cutting and non-cutting processing in all areas, also in the food, pharmaceutical and chemical industry. Note: The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free). The contact surface is the upper surface of the housing. The clamping module has one connection: 1x hydr. opening (1).
