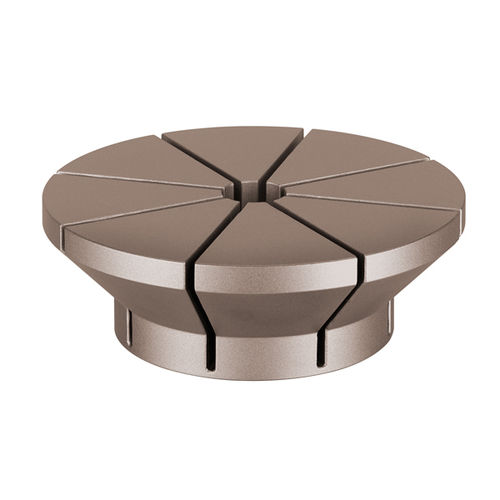

collet collet - 6375Z-149
  • Collet


Collet attachment dia. 149

Material: High-strength aluminium
suitable for collet 6375M / 6375H


The collet attachment with diameter 149 mm fits the collet elements order no. 533281 and order no. 545582. The collet attachment is made of anodised, high-strength aluminium.

The collet attachment is fastened to the main element by just one centrically applied screw and is therefore quickly replaced. The workpiece contour is milled into the collet attachment with a minimum clamping depth of 2 mm. Because the clamping force is evenly applied to the component in a radial direction, the counterplate is clamped warp-free.
The collet attachment can be milled off to a height of H1, allowing new workpiece contours to be introduced.
The maximum workpiece diameter is 140 mm.
