Blower controller MAGNOCONTROL 10/25

Overview
The MAGNOCONTROL 10/25 is an industrial controller for centralized management of HVLS fans. It provides GPRS connectivity for remote supervision, programmable automation and sensor-based environmental control suitable for large facilities.

Main features

• Remote monitoring and control via GPRS connectivity.
• Two capacity options: MAGNOCONTROL 10 (up to 10 fans) and MAGNOCONTROL 25 (up to 25 fans).
• Automation with programmable schedules and inputs from environmental sensors (temperature, humidity, CO₂) for automatic responses.
• Integration capability with automated window actuators to combine mechanical and natural ventilation.

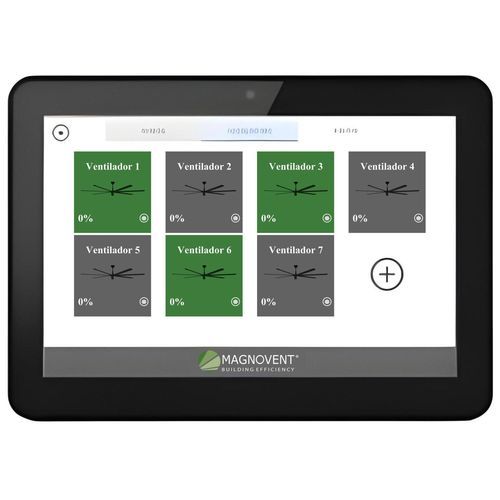

• 10.1" touchscreen LCD (1024 × 600) and IP65-rated front panel for industrial environments.

Applications
Designed for centralized and flexible control of HVLS fans in industrial buildings, warehouses, logistics hubs and large commercial facilities where optimized air movement and energy efficiency are required. Suitable for retrofit or new installations with modular deployment.

Technical specifications

• Model: MAGNOCONTROL 10/25
• Connectivity: GPRS for remote supervision and control
• Control capacity: MAGNOCONTROL 10 → up to 10 fans; MAGNOCONTROL 25 → up to 25 fans
• Automation: programmable schedules and management via environmental sensors (temperature, humidity, CO₂)
• Integration: supports automated window control
• Power supply: 100–220 VAC, 50–60 Hz
• Display: 10.1" LCD
• Display resolution: 1024 × 600 pixels
• Protection: front panel IP65 (water-resistant)
• Weight: 0.6 kg
• Use: centralized management of HVLS fans in industrial and large commercial installations
• Design: modular construction for energy efficiency and operational adaptability
