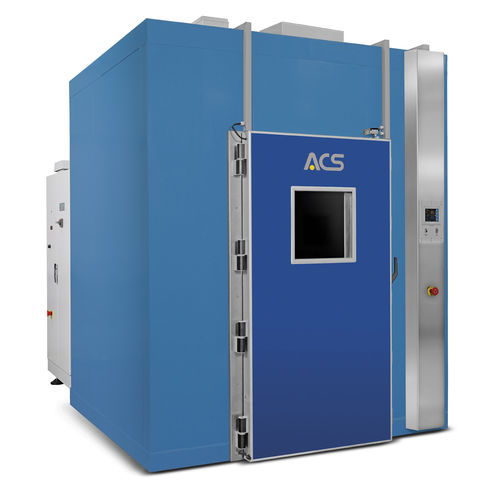

humidity and temperature test chamber / walk-in / modular
WZH - WZT SERIES
humidity and temperature
Options and accessories:
10 m³, 16 m³, 30 m³, 40 m³ (353 ft³)
Max.: 80 °C (176 °F)
Min.: 10 °C (50 °F)
Without compromising our high standards of quality and reliability, we wanted to reduce delivery times to twelve weeks or less and avoid the costs of design and engineering normally associated with the customized walk-in chambers.
Modular design is the solution. A cost-effective, modular design comprising the four basic elements of a walk-in chamber that can be mixed and matched to provide a configuration to suit the majority of requirements:
• Cooling Unit.
• Air Treatment Unit
• User interface.
• Test room
The modular walk-on line includes 4 models according to their useful capacity: Compact (10 m3), Medium (16 m3), Large (30 m3) and Extra Large (40 m3).
Each of these models is available in 6 versions according to cooling unit dimensions, except for Compact model which is available only in 4 versions (see the datasheet for detailed technical features of cooling units and performances).
➤ COOLING UNIT: the refrigeration equipment and humidification systems required for the control of the temp. and RH inside the walk-in chamber
➤ AIR TREATMENT UNIT: Powerful fans draw the chamber air across the heat exchangers for cooling and dehumidification, heaters and control sensors before recirculating the conditioned air back into the chamber.
➤ USER INTERFACE comprises:
-Emergency STOP push button.
-Touch panel programmer / controller.
-Serial interface RS 232/422
-Software + personal computer (optional).
➤ TEST ROOM: Vapour tight prefabricated panels suitable for multiple assembly and take down operations
