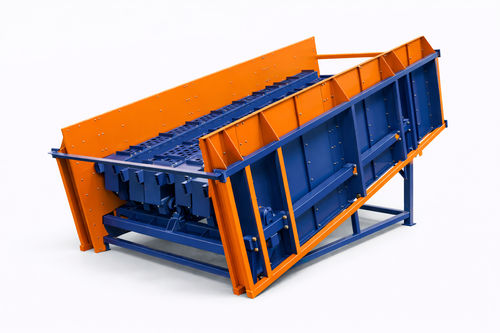

Wet screening screener AQ-SB

wetsortingfor bulk materials

Overview
Technologies engineered to automatically separate materials according to their shape, weight and density. The ballistic separator is engineered to deliver high-efficiency material sorting, featuring a robust structure, adjustable inclination and quick maintenance. Its advanced design optimizes energy consumption, performance and operational continuity.

Tilting Frame
Equipped with a mechanical inclination adjustment from 7.5° to 25°, the frame allows simple and effective optimization of separation quality.

Screening Surface
Bolt-on screening panels are available in various sizes and configurations, designed to simplify adjustment and maintenance operations. The heavy-duty structure is engineered to handle medium and heavy material streams.

Maintenance and Adjustments
Easy access to all operating areas of the machine through dedicated maintenance doors to facilitate routine inspections and quick interventions.

High-Quality Shafts
Heavy-duty shafts designed to handle even wet waste materials. Optimized stroke and operating speed ensure maximum productivity while minimizing vibrations.

Adjustable Outer Surface
Designed to optimize the feeding system and ensure seamless integration into the plant.

Technical Data Sheet
Models: AQ-SB
Length × Width × Height *: 6.0 x 3.0 x 2.8 m
Drive Power: 2 x 18.5 kW
Number of Paddles: 6
Screening Surface: 14.2 m²
Weight: 15 t
Capacity **: From 200 to 240 m³/h, depending on the screen aperture and the type of material.

Characteristics / technical specifications

• Model: AQ-SB
• Dimensions (L×W×H): 6.0 x 3.0 x 2.8 m
• Drive Power: 2 × 18.5 kW
• Number of paddles: 6
• Screening surface: 14.2 m²
• Weight: 15 t
• Capacity: 200–240 m³/h (dependent on screen aperture and material)
• Inclination adjustment: mechanical, 7.5°–25°
• Bolt-on screening panels for easy adjustment and maintenance
• Heavy-duty structure for medium/heavy material streams
• Heavy-duty shafts suitable for wet waste; optimized stroke and operating speed
• Dedicated maintenance doors for easy access
• Adjustable outer surface to optimize feeding and integration
• Design focused on energy consumption optimization, performance and operational continuity

Notes
* Configurations with customized dimensions are available to meet specific operational requirements.
** The values shown are for reference only and may vary depending on the particle size distribution of the material, the screen aperture characteristics and the overall material composition. Actual performance can be accurately determined through specific testing.
