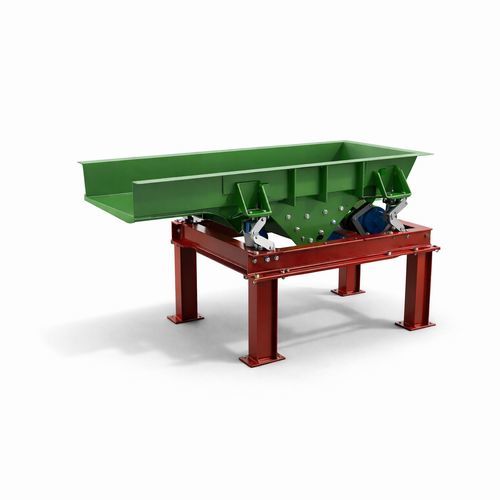

Vibrating feeder

for bulk materialscontinuous-motionmotor-driven

Overview
Vibrating feeders ensure precise dosing and a continuous supply of bulk materials in feeding and dosing applications. Suitable for lightly contaminated materials and easy integration into production lines.

Structure
Robust mild-steel trough reinforced with stiffening ribs to provide mechanical strength and long service life.

Operation
Two eccentric-weight vibratory motors deliver efficient, continuous motion and reliable performance under industrial conditions.

Adjustment
Vibration amplitude is simply adjusted by repositioning the eccentric weights, allowing accurate control of the feed rate.

Maintenance
Bolted internal wear-resistant steel lining designed for quick replacement to minimise downtime and simplify maintenance operations.

Details
Designed for dosing of lightly contaminated bulk materials.

• Material is conveyed by the motion generated by two vibratory motors, mounted on a trough isolated by springs or rubber buffers
• Ensures precise and efficient dosing

Technical specifications

• Production: 30 - 400 t/h
• Maximum material size: 0 - 400 mm
• Width: 300 - 1400 mm
• Length: 800 - 2000 mm
• Installed power: 0.2 - 4 kW
• Approximate weight: 200 - 1300 kg
