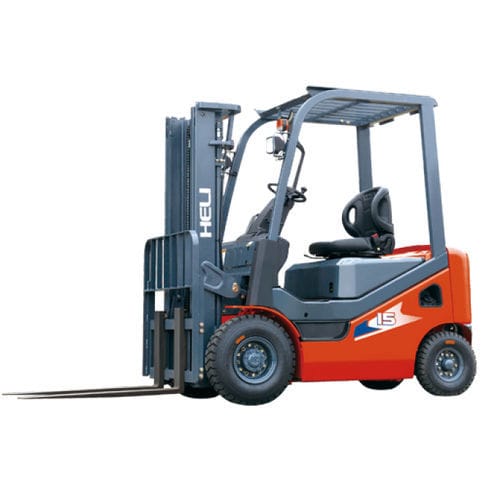

Diesel forklift truck H3
LPGride-onindustrial

Diesel forklift truck - H3  - Anhui HeLi Co.,Ltd. - LPG / ride-on / industrial
Diesel forklift truck - H3  - Anhui HeLi Co.,Ltd. - LPG / ride-on / industrial
Diesel forklift truck - H3  - Anhui HeLi Co.,Ltd. - LPG / ride-on / industrial - image - 2
Diesel forklift truck - H3  - Anhui HeLi Co.,Ltd. - LPG / ride-on / industrial - image - 3
Diesel forklift truck - H3  - Anhui HeLi Co.,Ltd. - LPG / ride-on / industrial - image - 4
Diesel forklift truck - H3  - Anhui HeLi Co.,Ltd. - LPG / ride-on / industrial - image - 5
Add to favorites
Compare this product

Characteristics

Motor type
diesel, LPG
Operator
ride-on
Applications
loading, industrial
Carrying capacity

Min.: 1 t
(1.1 us ton)

Max.: 3.8 t
(4.2 us ton)

Lifting height

2.14 mm, 2,150 mm, 2,170 mm
(0.08 in, 84.65 in, 85.43 in)

Overall width

1,070 mm
(42.1 in)

Overall length

Min.: 2,277 mm
(89.6 in)

Max.: 3,219 mm
(126.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,458 kg, 2,760 kg, 2,890 kg
(5,419 lb, 6,084.8 lb, 6,371.4 lb)

Free lift

152 mm, 155 mm
(6 in, 6.1 in)

Height to top of overhead guard

2,140 mm
(84.3 in)

Turning circle radius

1,875 mm, 1,910 mm, 1,930 mm, 2,240 mm
(73.8 in, 75.2 in, 76 in, 88.2 in)

Rated output

Min.: 23.6 kW
(32.1 hp)

Max.: 43.5 kW
(59.1 hp)

Rated speed

2,200 rpm, 2,400 rpm, 2,500 rpm, 2,600 rpm
(13,823 rad.min-1, 15,079.6 rad.min-1, 15,708 rad.min-1, 16,336.3 rad.min-1)

Noise level

3 dB

Description

1. Adopting suspended overhead guard to significantly reduce forklift vibration and improve operational comfort; 2. Configuring load sensing hydraulic system to improve work efficiency and reduce vehicle fuel consumption; 3. The core parts like gearbox and drive axle are HELI manufactured, and the key parts are imported, with a low failure rate and reliable quality; 4. Adopts the new generation of cast steering axle from HELI, which has good performance, high reliability, and long service life; 5. Ultra long oil change cycle, with a dust removal mileage over 6000 hours, making it convenient for users. Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.
