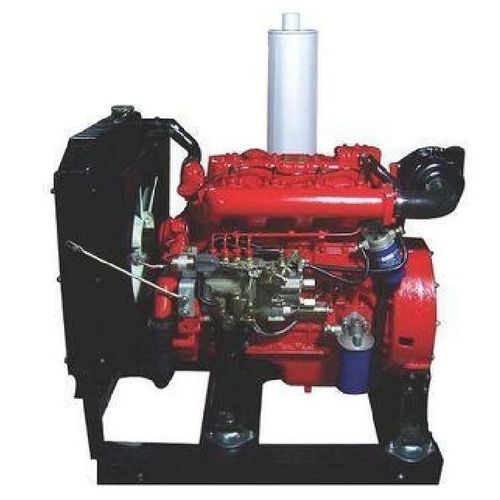

Diesel engine 4108QA
multi-cylinderdirect injectionvehicle

diesel engine
diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
multi-cylinder
Technology
direct injection
Product applications
vehicle, for fire fighting pumps
Other characteristics
compact, water-cooled, high-speed
Power

27 kW
(36.71 hp)

Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 27 Nm
(19.9142 ft.lb)

Rotational speed

2,100 rpm, 6,300 rpm
(13,194.69 rad.min-1, 39,584.07 rad.min-1)

Description

Quick Details Usage: fire fighting pump Fuel: Diesel Stroke: 4 Stroke Cylinder: Multi-cylinder Cold Style: Water-cooled Start: Electric Start Place of Origin: Anhui, China (Mainland) Brand Name: Quanchai Model Number: 4108QA type: natural chamber: direct injection cooler system: water cooler no.of cylinder: multi-cylinder engine: diesel Main Features : 1,Use the direct injection combustion chamber ,easy start, low fuel consumption ,better economy 2,Compact structure ,Light weight ,easier installation . 3,Strong power , little vibration ,good speed-governing . 4,The key spare part is same as of the high-speed vehicle engine parts, make the diesel engine be good reliability. Specification: Model - 4108QA Type - Vertical , in -line , water -cooled , Four -stroke , Direct injection Cyliner NO-Bore&Stroke - 4-108*118 Displacement (L) - 4.324L Cylinder liner type - DRY Intake way - Natural intake Rated output/speed ( kw/r/min) - 27/6300 Max torque (N.m/r/min) - 27/2100 The minimum fuel consumption ratio - ≦228g/kw.h Flywheel cover type - SAE11.5'' Flywheel type - SAE3# Diameter of exhuaust fan - Φ450
