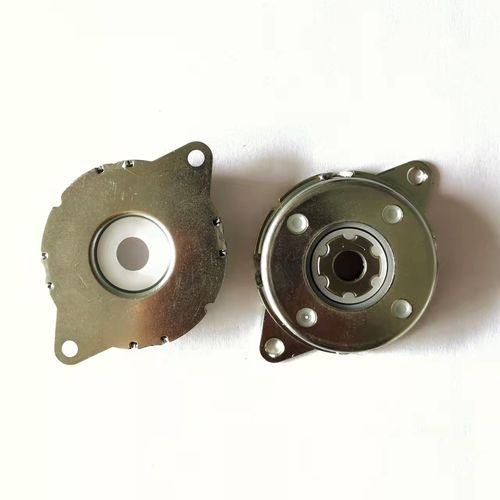

Rotary damper Q47X

fluidmechanicalfor machines

TYD rotary dampers provide smooth mechanical motion damping using silicone fluid resistance. Helping to protect expensive, delicate equipment and enclosures from damage caused by abrupt panel, door or draw closure they are tough and reliable with a life of over 50,000 cycles. Suitable for a diverse range of applications including Computer disk drives, CD players and delicate instrumentation equipment. Q47X has two types: One-directional Rotating type: Output torque range: 1Nm to 4.5 Nm Rotating Direction: Clockwise or Counter Clockwise Bi-directional Rotating type: Output torque range: 1Nm to 5 Nm Rotating Direction: Both Clockwise and Counter Clockwise · Rated torque measured at a rotation speed of 20rpm at 23°; · Torque can be customized by changing the oil viscosity. · Max. rotation speed: 50 r/pm · Max. cycle rate: 12cycles/min （1 cycle is CW 360° CCW360°） · Operating temperature: -10～50℃ · Weight: 50g±2g
