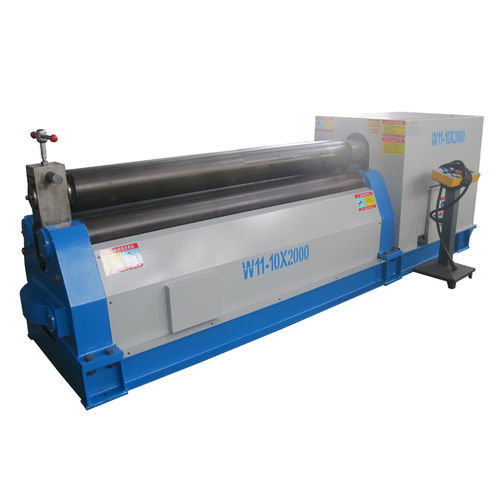

Plate bending machine W11-10X2000 series

The structure of mechanical three-roll symmetrical plate bending machine is three-roller symmetrical type. The upper roller performs vertical lifting movement at the symmetrical position of the center of the two lower rollers. The output gear of the reducer meshes with the teeth of the lower roller to provide torque for the rolled plate. The machine tool has a compact structure and is easy to operate and maintain. The pre-bending needs to be completed with other equipment. Control Form: Artificial Power Type: Electric Object Material: Metal Applicable Industries: Universal Scope of Application: Bending deformation of sheet metal Performance Characteristics The structure of W11 series mechanical three-roll symmetrical plate bending machine is three-roll symmetrical type. The upper roller moves vertically up and down through the bevel gear transmission at the central symmetrical position of the two lower rollers. The final gear of the main reducer drives the gears of the two lower rollers to mesh. Cooperative rotary motion to provide torque to the rolled sheet. The flat-sized plastic metal plate passes between the three work rolls (two lower rolls and one upper roll) of the plate rolling machine, and the metal plate is continuously bent through multiple passes with the help of the lower pressure of the upper roll and the rotation of the lower roll. Permanent plastic deformation is produced, and it is rolled into the required cylinder, cone or part of them. The disadvantage of this mechanical three-roll plate bending machine is that the end of the plate needs to be pre-bent with other equipment.
