Valve control unit VDR 50

regulating

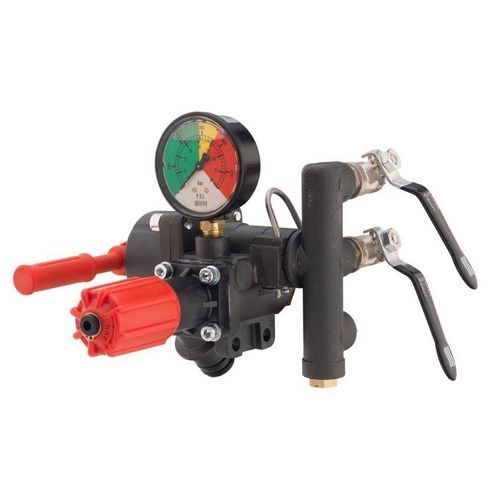

Control unit with working pressure regulating valve, by-pass opening/closing lever and glycerine bath pressure gauge with coloured dial. Suitable for AR 503, AR 713, AR 813, AR 903, AR 1053, AR 1064, AR 1203, AR 30, AR 50, BHA, BHS and BHP pumps. The VDR 50 control unit is designed for regulating working pressure in the distribution of sprayed liquids. VDR 50 comprises a pressure regulating diaphragm valve with a manual adjustment knob. The main body is also equipped with a rapid drain valve. The pressurised outlet to the users is connected through a 4-way manifold with 2 outlet valves (+2 optional valves). Anti-drop System. Technical specifications AR Code - 950 Version - 50 Max flow (lpm) - 130 Max flow (gpm) - 34.3 Max Pressure (bar) - 50 Max Pressure (psi) - 725 Net weight (Kg) - 2.2 Size (mm) - L - 237 Size (mm) - H - 308 Size (mm) - W - 285
