Android tablet VZ2189T

21.5"Rockchip RK35764 GB

Product overview

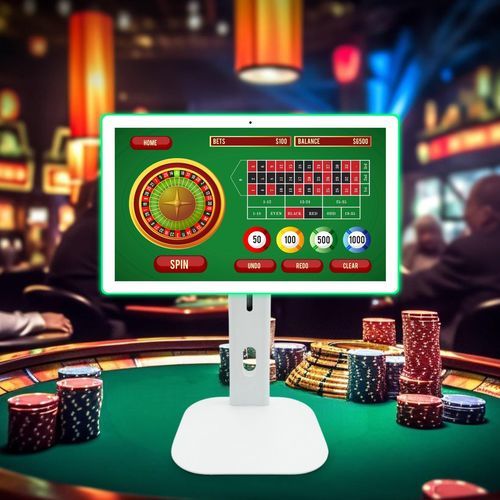

21.5-inch Android interactive digital signage VZ2189T by ASK. Designed for indoor/outdoor commercial use, the unit integrates a 10‑point capacitive touchscreen and NFC to support kiosks, membership systems and payment terminals.

Key specifications

• Model: VZ2189T
• Display: 21.5" 1920×1080, 16:9, 250 cd/m²
• Touch: 10‑Point capacitive touchscreen; Pixel pitch 2.5 mm
• CPU: RK3576S (quad‑core A53 + quad‑core A72)
• Memory: 4GB RAM; Storage: 32GB ROM
• OS: Android
• Speakers: 2 × 2.2W; Front camera: 5.0MP
• Dimensions: 520.6 × 312.5 × 27.5 mm; Gross weight: 2.2 kg
• Operating temperature: -20℃ to 60℃; Warranty: 1 Year

Hardware & performance

• Response time: 7 ms; Color depth: 16‑bit; Contrast ratio: 3000:1
• Display function: graphics, animation, text; Content management supported
• Remote device management: recommended via CMS system
• Supplier type: Original Manufacturer; Datasheet available on request

Installation & environment

• Mounting types: wall mount, hanging, bracket; mobile, wall, horizontal, permanent outdoor options
• Usage: Indoor / Outdoor; Voltage: configurable to local standards

Connectivity & interfaces

• Network: RJ45/POE; Wireless: WiFi
• Interfaces: USB, Micro USB, SD card, Earphone; HDMI available where specified
• Built‑in NFC for membership and payment integration

Packaging & lead time

• Single package size: 55 × 36 × 12 cm; Single gross weight: 2.2 kg
• Lead time: 1 unit → 15 days; 2–100 → 25 days; >100 → to be negotiated

Applications

• Advertising displays, retail stores, kiosks, casino membership/payment terminals
• Restaurant menu displays, conference rooms, hotel rooms

Warranty & support
One‑year warranty. ASK provides manufacturer support and optional CMS integration for remote content and device management. Datasheet and customization options available on request.
