Simulation software ANSYS SCADE Display
HMI terminal programminggraphicverification

simulation software
simulation software
simulation software
simulation software
simulation software
simulation software
simulation software
Add to favorites
Compare this product


simulation, HMI terminal programming, graphic, verification, embedded, prototyping

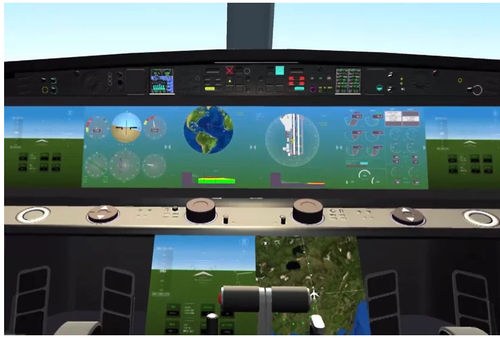

Design robust embedded displays for human machine interfaces SCADE Display is part of the Ansys Embedded Software family of products, which provides you with a versatile graphics design and development environment for embedded Human Machine Interfaces (HMI). With native support for the OpenGL® SC1 & SC2 (Safety Critical) and ES1 & ES2 (Embedded System) standards, SCADE Display represents a new generation of graphics software development tools, spanning prototyping, display design, simulation, verification and validation, and certified code generation supporting several safety standards in a certifiable environment. SCADE Display is tightly integrated with SCADE Suite to provide a comprehensive development environment for both embedded HMIs and their behavioral logic. SCADE Display Applications SCADE Display is used as an HMI display software prototyping and development tool by leading companies in the aerospace, rail transportation, automotive, nuclear and industrial domains. It is ideally suited to support the design of critical embedded display systems (multifunction displays, head-up displays, automotive clusters, digital instrumentation and control panels, etc.), but also to create schematics (electrical, hydraulic or plant mimic diagrams), as well as 2-D/3-D simulator displays and trainers for drivers, pilots, crews or testing and maintenance teams.
