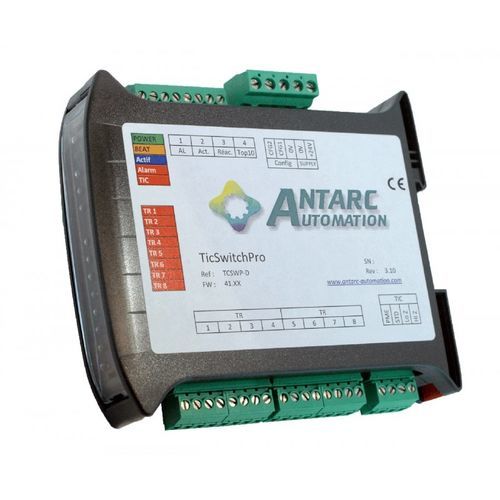

Decoder TicSwitch®
Add to favorites
Compare this product
Description
Presentation
Main features
Compatibility and supported tariff ranges
Specific configuration
Application areas
Technical characteristics / specifications
- Decoder of customer teleinformation (TIC) signals from electronic meters to extract the current tariff period.
- Information delivered on 8 NO dry contacts.
- Pro version: active/reactive energy counting and Top10 available on OptoMos outputs. Dedicated OptoMos contact for "TIC signal fault" alarm.
- Power supply: 10–30VDC or 85–264VAC depending on version.
Main features
- 1 opto-isolated TIC input (integrated optocoupler) with high/low impedance configuration for coexistence with third‑party systems.
- 8 digital outputs (relay/TOR) for tariff periods.
- Pro and Load-shedding versions: 4 energy impulse outputs (OptoMos).
- Selectable pulse weight (default 100 Wh or 10 Wh via external jumper). DN version: pulses up to 20 Hz (subscriptions up to 720 kW at 10 Wh/pulse). DH version: 60 Hz (subscriptions up to 2 MW at 10 Wh/pulse).
- No dedicated software or hardware required; delivered ready to use.
Compatibility and supported tariff ranges
- Compatible with electronic meters Blue (CBE), Yellow (CJE), Green (ICE), LINKY, PME‑PMI, SAPHIR (if TIC output present, 1200 or 9600 baud).
- Supports meters with injection (cogeneration, PV, wind).
- Supported tariffs:
- Blue (CBE): up to 6 periods (HCJB/HCJW/HCJR/HPJB/HPJW/HPJR).
- Linky (LNK): 1 to 8 periods.
- Yellow (CJE): 6 periods (HPE/HCE/HPH/HCH/P/PM).
- Green (ICE): up to 8 periods (PM/HH/HPE/HCE (A5 EJP) / P/HPH/HCH/HPD/HCD/HPE/HCE/JA (A8 Base)).
- ICE‑4Q Injection, PME‑PMI, SAPHIR: up to 8 periods depending on configuration.
Specific configuration
- For ICE‑4Q, PME‑PMI, SAPHIR: option to decode either consumption (soutirage) or injection period (jumper on dedicated terminal).
- Second jumper: configure the "energy" outputs (Pro and Load‑shedding) according to meter type (e.g., consumption/injection, energy 1/2, Distributor/Supplier).
Application areas
- BMS / Building automation (GTB / GTC)
- Energy management and optimization systems
- Energy monitoring
- Load shedding
Technical characteristics / specifications
- Product reference (SKU): TCSW-D
- Number of TIC input channels: 1
- Number of digital (TOR) outputs: 8
- Relay outputs: 8 relays 1A / 30VDC - 0.5A / 125VAC (all versions)
- OptoMos outputs (Pro and Load‑shedding): 4 OptoMos 48V / 200mA AC/DC
- Power supply: 10–30VDC or 85–264VAC (depending on version)
- Consumption: typ. 0.7W - 30mA @ 24VDC
- Connections: removable Phoenix connectors (MSTB 5.08 pitch for power; MCV 3.81 pitch / RJ45 for PME‑PMI TIC channel; MCV 3.81 pitch for outputs)
- Dimensions: 22.5 (W) x 101 (H) x 119 (D) mm
- Weight: 140 g
- Mounting: symmetrical DIN rail
- Operating position: any
- Operating temperature: -20°C to 80°C
- Ambient humidity: 10 – 90 % RH (non‑condensing)
- Compatible meters (examples): Landis & Gyr (L16C2, L16C5, ZMD126, L18C4, L18C5, ZMB126 depending on FW), Sagem (S10C2, U3C2, C1000, C2000, C2000‑4...), LINKY mono/tri, SagemCom C3000, Actaris (A70TJ, A12ETJ...), Chauvin‑Arnoux TRIMARAN 2, Actaris QE16, QE16M, Itron ACE6000, SagemCom C3500, ALTYS, etc.
