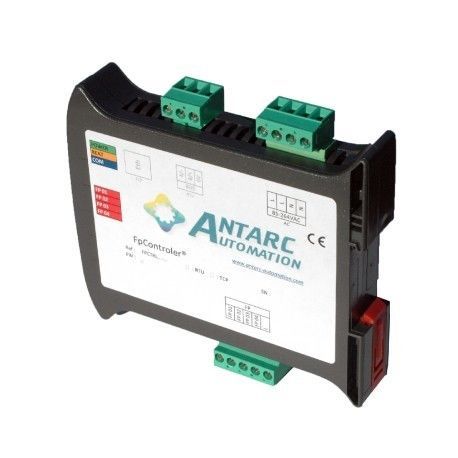

Communication gateway FpControler®

industrialtelemetryEthernet

Short description

• Modbus-to-pilot-wire (Fil Pilote) gateway with 4 or 8 channels
• Compatible with 4- and 6-step orders
• Up to 25 heaters controlled per channel
• Modbus RTU or Modbus TCP
• Supply 85-264 VAC
• Status display for each channel
• Configurable power-up mode per channel
• Modular DIN enclosure 22.5 mm (1.25U)

Detailed description
The FpControler is a Modbus-to-pilot-wire gateway enabling a BMS (Building Management System) to control fleets of electric heaters. It addresses 4 or 8 independent zones. Outputs are opto-isolated and permit the connection of dozens of heaters distributed across the outputs. Each output can be set to one of the four orders (Comfort / Eco / Frost‑protection / Off) or six orders (Comfort -1°C / Comfort -2°C). The default mode for each channel at power-up or after a Modbus communication timeout is configurable. Addressing and basic configuration are limited to setting the module address via Modbus; no dedicated tool is required. The gateway is offered in Modbus RTU (RS485) or Modbus TCP (Ethernet) versions, and in 4- or 8-channel Fil Pilote output variants.

Application fields

• Control of electric heater fleets via BMS using pilot‑wire commands
• Intelligent load shedding
• Comfort management

Technical information

• Bus (RS485): RS485 on twisted pair
• Speeds (RS485): 1200, 2400, 9600, 19200 baud
• Parity: none / even / odd
• Bus (Ethernet): Ethernet on twisted pair
• Speeds (Ethernet): 10 / 100 Mbps
• Protocol: Modbus / Jbus
• Supported functions: 3, 6 and 16
• Grouping length: 30 registers
• Power supply: 85-264 VAC
• Consumption: 0.7 W excluding pilot-wire loads (typ. RTU)
• Connections: Power, bus and pilot‑wire via removable Phoenix MSTB pitch 5.08 connector
• Number of controlled heaters: indicative ~100 (product notes: up to 25 per channel; about 50 heaters connectable across outputs)
• Geometry: Dimensions 22.5 x 101 x 119 mm (W x H x D)
• Weight: 148 g
• Mounting: Symmetric DIN rail
• Operating position: any
• Environment: Operating temperature -20°C to 80°C
• Ambient humidity: 10–90% RH, non-condensing

Characteristics / technical specifications

• Commercial name: FpControler
• Main function: Modbus-to-pilot-wire gateway (heater control)
• Bus versions: RTU (RS485) or TCP (Ethernet)
• Pilot‑wire outputs: 4 or 8 channels
• Orders per channel: 4 orders (Comfort / Eco / Frost‑protection / Off) or 6 orders (Comfort -1°C / Comfort -2°C)
• Addressing and configuration via Modbus
• Opto‑isolated outputs
• Supply: 85-264 VAC
• Typical consumption: 0.7 W (excluding pilot‑wire loads, typ. RTU)
• Connectors: Phoenix MSTB pitch 5.08 removable
• Control capacity: product note up to 25 heaters per channel; approx. 50 heaters connectable across outputs; indicative total ~100
• Protocols: Modbus/Jbus; functions 3, 6, 16; grouping 30 registers
• Dimensions: 22.5 x 101 x 119 mm
• Weight: 148 g
• Mounting: DIN rail
• Operating temperature: -20°C to 80°C
• Humidity: 10–90% RH (non-condensing)
