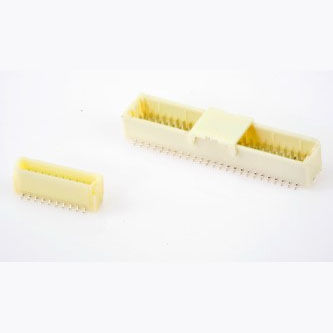

Wire-to-board connector AM1D-S-100-XX-T-PVDdataSMTstraight
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- SMT, wire-to-board
- Shape
- straight
- Connection type
- male
- Electrical characteristics
- multipole, AC, DC
- Other characteristics
- double-row
- Primary current
1 A
- Voltage
50 V
- Pitch
1 mm
(0.039 in)
Description
Wafer straight SMT type with walls
Technical specifications
Current rating : 1 A AC, DC
Voltage rating : 50 Volts AC, DC
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 100 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -40°C to +85°C
Max processing temperature : 260°C during 5 sec
Contact : phosphor bronze
Plating : tin
Insulator : PA9T, UL94V-0
