DIN connector 16-M-PC-DB-( )-(AB)datatype Brectangular
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN, type B
- Shape
- rectangular, straight, right-angle
- Connection type
- male
- Electrical characteristics
- multipole
- Material
- PBT
- Primary current
2 A
- Voltage
250 V
Description

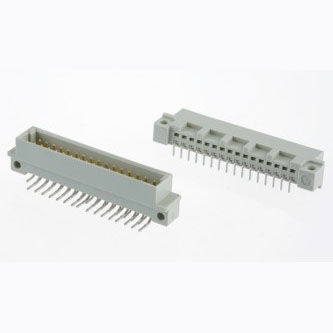

DIN 41612 half B type male
Technical specifications
Current rating : 2.0 A
Voltage rating : 250 Volts
Insulation resistance : > 10^12 Ω
Contact resistance : < 15 mΩ
Operating temperature : -55°C to +105°C
Mecanical life : < 50 cycles
Insertion force : 30 N
Contact : copper alloy
Plating : selective gold/tin
Insulator : PBT, UL94V-0
