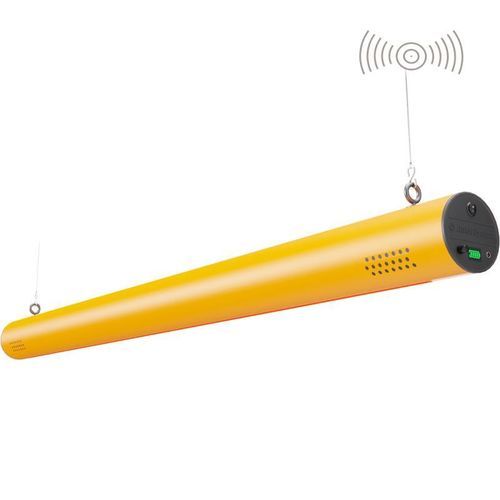

Height clearance bar

Product overview The Height Restrictor Alarm Bar protects ceilings, mezzanines, low clearances and gates from collisions with vehicles and forklifts. The device combines an audible alarm and high‑brightness visual LED indication that activate on impact. The flexible barrier is made from a high‑performance polymer that absorbs impact energy and returns to its original shape after deformation. The material is fire‑resistant, corrosion‑free and rated for wide temperature ranges. The system is configurable to customer installation requirements and is TÜV certified.

Features

• Impact alarm duration: 15 seconds
• Sound level: 102 dB
• Power supply: battery or mains
• High‑brightness LED indicators
• ISO mounting in two or three points

Operation On contact, the Alarm Bar triggers an audible alarm and visual LED signal to warn operators of a potential collision. The dynamic polymer construction dissipates impact forces and returns to shape after deformation, reducing maintenance needs. Mounting and power options are configurable to suit specific site requirements.

Additional technical data Available colours: yellow and black. Material: high‑performance polymer. Width range: 2000 mm – 4000 mm. Diameter: 140 mm. Typical applications: protection of ceilings, mezzanines, low clearances and gates. Installation: customizable to client requirements. Certified by TÜV Rheinland.

Technical specifications

• Model type: Alarm Bar height restrictor
• Material: high‑performance polymer (fire‑resistant, corrosion‑free)
• Available colours: yellow and black
• Width: 2000 mm – 4000 mm
• Diameter: 140 mm
• Impact alarm duration: 15 s
• Acoustic output: 102 dB
• Power: battery or mains connection
• Indicators: high‑brightness LEDs
• Mounting: ISO mounting in two or three points (customizable)
• Application: protection of ceilings, mezzanines, low clearances and gates
• Certification: TÜV Rheinland safety certificate
