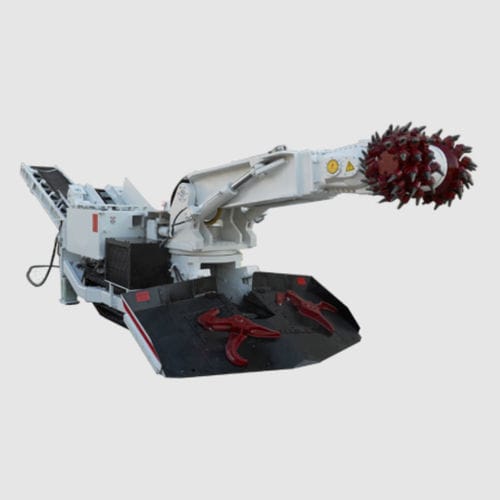

The Antraquip AQM150 roadheader is a heavy weight class roadheader designed for tunneling and soft to medium hard rock Mining applications.
Features and Values
Capable of cutting very hard rock economically
Integrated high pressure pick flushing system – increased safety and pick life
Low rotation speed of the cutter head and high installed power – minimum dust development
Low ground pressure of crawler tracks
No movements of crawler chains during sumping the cutter unit – no destruction of floor in soft conditions
Key Specifications
Technical Data -
Weight: - approx. 35 t
Height: - 1,900 mm
Length: - 8,128 mm
Width of Loading Apron: - 2,000 mm
Cutter Motor: - 130 kW
CUTTING PROFILE: -
Max. Cutting Height: - 4,250 mm
Max. Cutting Width: - 5,400 mm
Max. Undercut: - 180 mm
