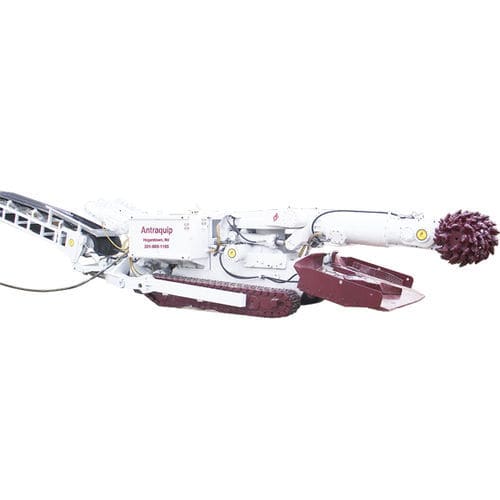

The Antraquip model AQM 50 is a roadheader in the 18 ton weight class, with the worlds narrowest roadheader. It is ideally suited for tunneling and mining where only a very narrow machine fits.
Weight: - approx. 18 t
Height: - 1,500 mm
Length: - 5,540 mm
Width of Loading Apron: - 1,730 mm
Cutter Motor: - 33 kW
CUTTING PROFILE: -
Max. Cutting Height: - 3,950 mm
Max. Cutting Width: - 5,200 mm
Max. Undercut: - 100 mm
