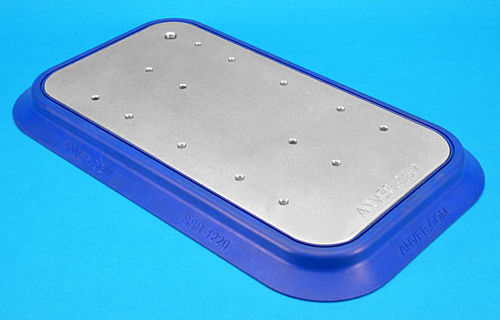

Rectangular suction cup VP series

nitrilesiliconehandling

ANVER Rectangular Vacuum Seal Pad Attachments are ideal for lifting heavy, compact loads in situations where the available load surface precludes the use of lifters with multiple pads. • Can handle both heavy and thin brittle loads • High Lifting Capacity for a compact size • Non-slip rubber bottom can handle thin or brittle materials without deforming or breaking them • Shallow lip for quick attach and release • An excellent pad for handling glass and stone panels in the vertical and horizontal position • Takes a 3/8″ NPT port hose barb • Note that the bonded one-piece pads come with M10 x 1.5 threaded mounting holes which do not protrude further than the metal plate. They are blind and sealed by the rubber underneath. If you bolt these pads to a plate you need to select the correct length Metric Screws so they do not protrude too far and poke through the rubber. If the rubber underneath the bolts is pierced these pads will leak. • The two-piece aluminum pad with seal (VP1117-NBR and VP1220A-NBR) has blind tapped holes and are vacuum tight.
