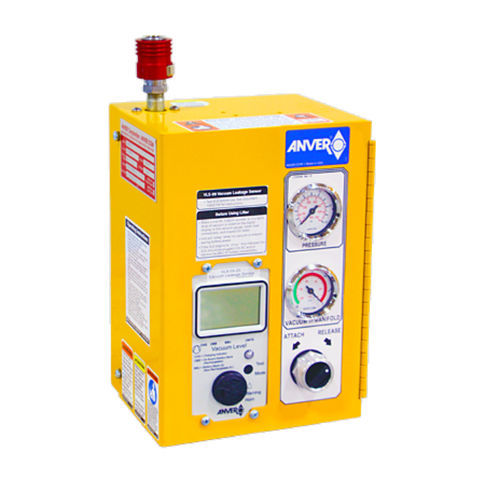

Dry vacuum unit AL series

industrialcompactmini

ANVER Air-Powered Mini-Vacuum Stations are low cost, compact, require little maintenance, and feature quality Venturi vacuum generators. A vacuum check valve maintains vacuum in case of power failure. The unit will hold vacuum per ASME Standard B30.2 for vacuum lifting devices on clean, smooth, non-porous material allowing the operator to put down the load safely. A vacuum release/blow-off valve ensures a quick and consistent attach and release for high production usage. Air supply must be clean, dry, and regulated. • Air Saver Technology: The vacuum controlled valve shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimized. Input Pressure to be regulated to 90 psi on Energy Air Saver Models. • Pressure gauge for monitoring incoming compressed air. • Excellent performance on slightly porous material • Internal air filter with replaceable element on vacuum port protects against contamination
