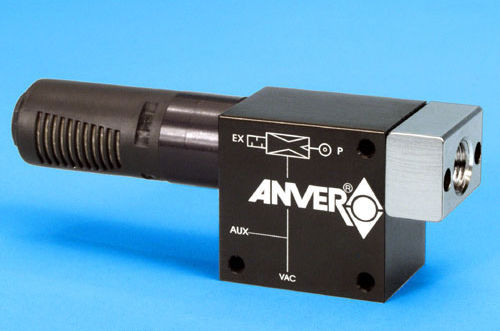

Venturi vacuum pump JB series
dry24VDC110VAC

Venturi vacuum pump - JB series - ANVER Vacuum System Specialists - dry / 24VDC / 110VAC
Venturi vacuum pump - JB series - ANVER Vacuum System Specialists - dry / 24VDC / 110VAC
Venturi vacuum pump - JB series - ANVER Vacuum System Specialists - dry / 24VDC / 110VAC - image - 2
Venturi vacuum pump - JB series - ANVER Vacuum System Specialists - dry / 24VDC / 110VAC - image - 3
Venturi vacuum pump - JB series - ANVER Vacuum System Specialists - dry / 24VDC / 110VAC - image - 4
Venturi vacuum pump - JB series - ANVER Vacuum System Specialists - dry / 24VDC / 110VAC - image - 5
Venturi vacuum pump - JB series - ANVER Vacuum System Specialists - dry / 24VDC / 110VAC - image - 6
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Technology
Venturi
Lubrication
dry
Supply voltage
24VDC, 110VAC
Number of stages
single-stage
Flow rate

54 l/min, 75 l/min, 130 l/min, 200 l/min, 270 l/min
(14.27 us gal/min, 19.81 us gal/min, 34.34 us gal/min, 52.83 us gal/min, 71.33 us gal/min)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -10 °C
(14 °F)

Description

The preferred air pumps for most applications – Simple to install, low cost, no moving parts, proven reliability The JB Series Pumps can handle the majority of applications more economically than others because these pumps are designed without internal moving parts, making them extremely reliable. Virtually maintenance-free, these pumps will work almost indefinitely by simply using a filter and dry, clean air to keep out debris. Suitable for use with the JB Series Pumps  are the JB Series Vacuum Generators, which can achieve vacuum control from a manual or automatic control valve located on a compressed air supply line (not included with the standard generator). The JB Series Vacuum Generators and Vacuum Pumps are recommended for use where vacuum is required on an intermittent basis or when a basic/practical, low cost design is desired. • Vacuum level: 90% (27 in. Hg Standard) • Vacuum gauge • Mufflers • Vacuum port extension • Vacuum switches • Control valve
