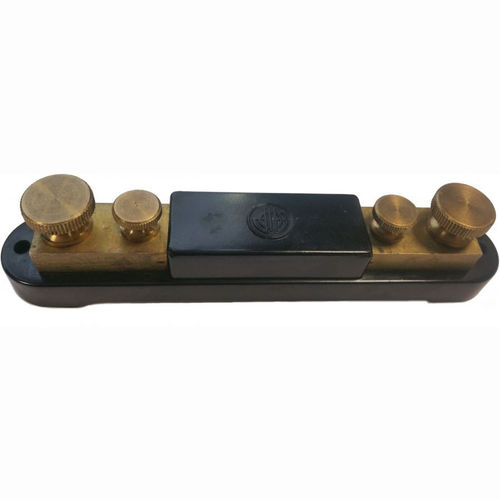

Brass shunt SH series

The shunt is a passive component allowing DC current to be measured. When the shunt is calibrated with precision within a 0.2% accuracy class, measuring the voltage drop between its two terminals enables to calculate the exact current value going through the shunt. Our shunt can be used as reference resistor for our micro-ohmmeters and data acquisition systems. Specifications Brass connection terminals: 2 'current' terminals to connect the shunt to the circuit 2 'potential' terminals to connect the shunt to the measuring instrument Overload: 20% in normal operating conditions, 50% in short accidental regime
