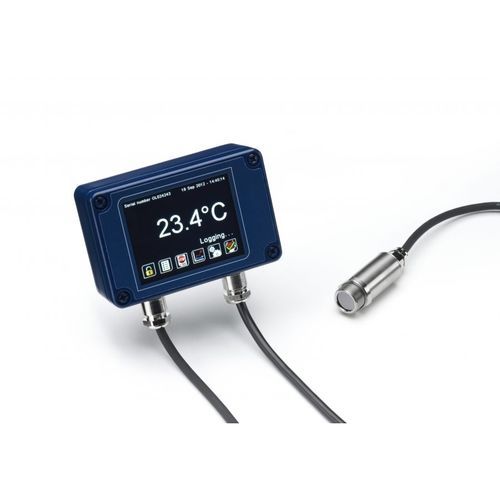

Infrared thermometer RAYOMATIC 16 2.2

with touchscreen°C4-20 mA

IRtec Rayomatic 16 2.2 Series is a range of miniature non-contact infrared temperature sensors with separate electronics modules measuring from 100°C to 2000°C. All models have an adjustable emissivity setting and are ideal recommended for demanding industrial applications where the target temperature is very high, or where the target surface has a low emissivity, for example many types of metal: steel industry, food industry, paper… The optional touch screen interface provides temperature indication, alarms, sensor configuration and data logging to MicroSD Card. The low-noise cable is resistant to interference from movement, so it is ideal for mounting on moving objects such as robot arms. A choice of optics are available to measure small or large targets at short or long distances, and there is a choice of 4-20 mA, RS485 Modbus and alarm relay outputs. • 2.0 to 2.6 µm • Miniature sensing head and configurable electronics module • Optional touch screen for temperature indication and configuration • Optional datalogging to MicroSD • Sensing head cable resistant to interference from movement • 4-20 mA, RS485 Modbus or 24 V alarm relay outputs in option • MIN / MAX / AVG values, peak / valley hold
