Electronic soft starter NS3 series
squirrel-cage motorlow-powerthree-phase

electronic soft starter
electronic soft starter
Add to favorites
Compare this product


Characteristics

Type
squirrel-cage motor
Technology
electronic
Electrical characteristics
low-power, three-phase, medium-power
Other characteristics
control
Current

Min.: 16 A

Max.: 1,158 A

Power

Min.: 4 kW
(5.44 hp)

Max.: 670 kW
(910.95 hp)

Description

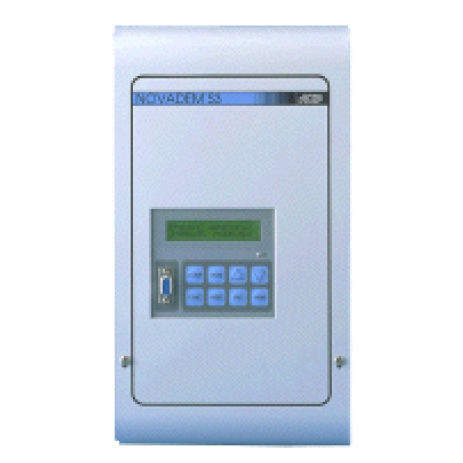

The soft starter NOVADEM S3 (NS3) is designed to control all aspects of starting, stopping and protection of 3 phase squirrel cage motors up to 1200 kW at 690 V. These high performance digital starters offer a user interface that supports a quick programming method by using pre-configurated application macros. The NS3 also features as standard a RS232 serial link to communicate with a PC or a network. The NS3 starters allow a progressive starting, protection and stopping (freewheel, regulated or quick) of any three-phase asynchronous motors over a large range of power. The NS3 user interface is made of: - A user-friendly display and keyboard interface for quick programming of every application by selecting the appropriate macro-programming - A RS 232 serial link to connect it to a PC or a network The powerful software enables the starter to be programmed and maintained without the constant need for an operating manual.
