Electro-hydraulic press brake A-Bend Series

CNCworkshopautomatic

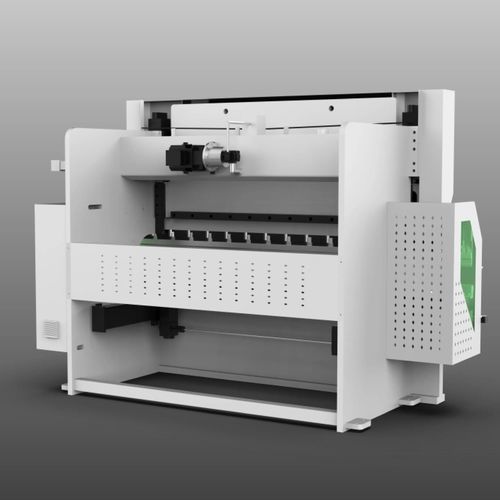

Overview The A-Bend Series electro-hydraulic servo press brake is designed for industrial sheet metal bending with a high-rigidity interlocking welded frame that minimizes deformation and ensures long-term bending accuracy. Key structural members are digitally optimized to distribute stress evenly across the frame.

Mechanical Crowning System Precision-machined, heat-treated wedge-type mechanical crowning. The CNC control calculates compensation according to workpiece loading and adjusts upper and lower beam deflection in real time to maintain uniform bend accuracy over the full working length.

Rear Safety Guarding (Optional) Optional rear guarding isolates hazardous zones and prevents access to the machine operating area during cycle. The system is designed to meet contemporary industrial safety standards and improve operator protection.

Adjustable Front Support Arms Front support arms use rollers and linear guides for smooth positioning and straightforward adjustment to different workpiece sizes. Both horizontal and vertical adjustments enable rapid alignment of supports to sheet dimensions, improving handling and throughput.

Laser Safety Protection System (Optional) Optional laser light curtain protects the entire bending area. If any part of the operator enters the defined safety zone, the machine stops immediately to prevent pinch and crush injuries.

Follow-up Support System (Optional) The follow-up support system moves synchronously with the workpiece during bending to provide continuous support, preventing sagging and deformation due to gravity, reducing manual handling and increasing process efficiency.

Control System Internationally recognized CNC control platform providing integrated, multifunctional control for precise and efficient bending operations. Intuitive interface and intelligent features simplify programming and operation.

Applications

• Automotive component manufacturing
• Construction machinery
• Elevator manufacturing
• Sheet metal processing

Technical parameters

• A-Bend 10032 — Press force: 1000 kN; Bending length: 3200 mm; Width between columns: 2600 mm; Throat depth: 400 mm; Slider travel: 200 mm; Opening height (D): 480 mm

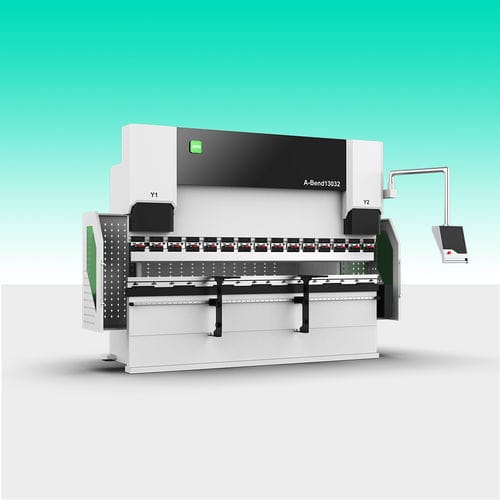

• A-Bend 13032 — Press force: 1300 kN; Bending length: 3200 mm; Width between columns: 2600 mm; Throat depth: 400 mm; Slider travel: 200 mm; Opening height (D): 480 mm
• A-Bend 17032 — Press force: 1700 kN; Bending length: 3200 mm; Width between columns: 2600 mm; Throat depth: 400 mm; Slider travel: 200 mm; Opening height (D): 480 mm
• A-Bend 20032 — Press force: 2000 kN; Bending length: 3200 mm; Width between columns: 2600 mm; Throat depth: 400 mm; Slider travel: 200 mm; Opening height (D): 480 mm
• A-Bend 25032 — Press force: 2500 kN; Bending length: 3200 mm; Width between columns: 2600 mm; Throat depth: 400 mm; Slider travel: 250 mm; Opening height (D): 500 mm
• A-Bend 32032 — Press force: 3200 kN; Bending length: 3200 mm; Width between columns: 2600 mm; Throat depth: 400 mm; Slider travel: 250 mm; Opening height (D): 500 mm

Technical specifications

• Series name: A-Bend Series
• Machine type: Electro-hydraulic servo press brake
• Frame: High-rigidity interlocking welded frame with digitally optimized stress distribution
• Crowning: Wedge-type mechanical crowning with automatic CNC compensation
• Safety: Optional rear guarding and optional laser safety light curtain
• Support: Adjustable front support arms with roller and linear guide; optional follow-up support system
• Control: International CNC control system, integrated multifunctional platform
• Models and press forces: A-Bend 10032 (1000 kN), 13032 (1300 kN), 17032 (1700 kN), 20032 (2000 kN), 25032 (2500 kN), 32032 (3200 kN)
• Common dimensions: Bending length 3200 mm; Width between columns 2600 mm; Throat depth 400 mm
• Travel and opening: Slider travel 200 mm (250 mm on some models); Opening height 480–500 mm depending on model
