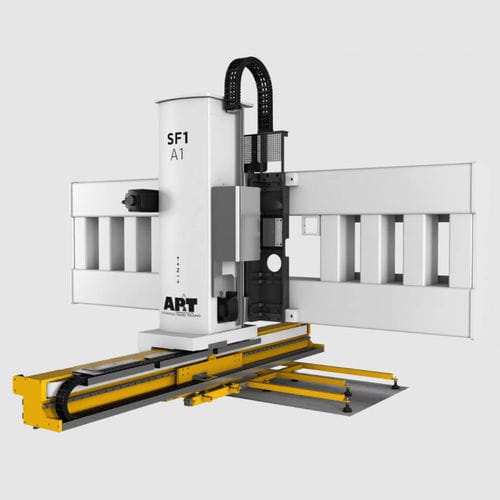

Flexible feeder SF 130 T2

gripperfor pressesindustry

AP&T Group is the world leader in modular feeder automation, and the company builds approximately 300 units a year. The systems are high speed, flexible and easy to maintain and upgrade. The units are completely standardized and meet all applicable industry standards such as CE/UL/CSA, for example. Standard stroke length X: 3000 mm Y: Option Z: 600 mm A: Option (360°) Max. stroke length X: 5600 mm in increments of 200 mm Y: 10000 mm in increments of 100 mm Z: 1000 mm in increments of 200 mm Max. gripper length: 1500 mm Max. handled weight: 130 kg (a higher load can be handled with a shorter gripper length)
