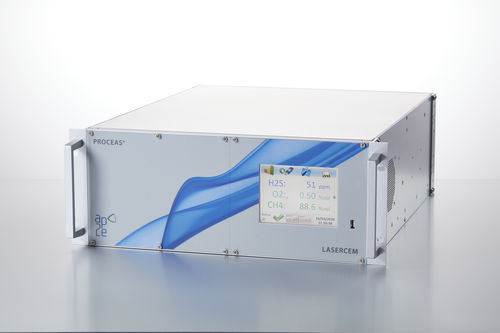

Oxygen analyzer ProCeas®

flue gassignalfor monitoring gas emissions

The ProCeas O2 is a complete pre-calibrated laser infrared spectrometer formeasurement of low level O2 for process optimization. -The ProCeas O2 uses the patented OFCEAS (WO 03031949) IR Laser technology for enhanced specificity, selectivity, accuracy and stability (no instrumental response drift.) -The ProCeas O2 uses a patented low-pressure sampling system (WO 2010058107) enabling low-cost installation thank to non-heated lines* and reduced maintenance. A d v a n t a g e s & B e n e f i t s DIRECT MEASUREMENT No sample pre-treatment.OFCEAS technology associated with low pressure sam-pling enables direct measurement. The low pressure in the sampling system removes any risk for chemicals adsorption/desorption and condensation in the line. NO INTERFERENCE OFCEAS technology associated with low pressure sampling provides exceptional selectivity, enabling si-multaneous multi-component measurement without interferences, regardless of the matrix. NO RE-ZERO; NO DRIFT The zero information is contained in the signal, enabling automated and intrinsic re-zero of the analyzer. EASE-OF-USE The ProCeas is pre-calibrated for your application. Ini-tially packaged in a standard 19”rack, it includes a touch screen interface and on-board PC for local / remote control and real time display / recording of results.
