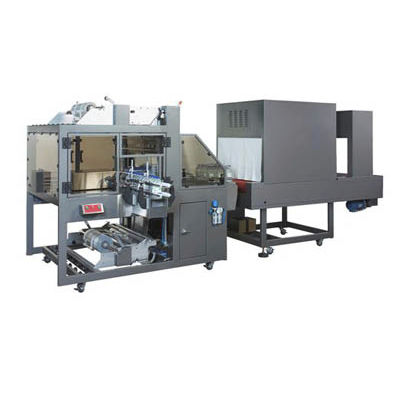

Automatic shrink wrapping machine B34-90/DZ-34

sleevewith shrink tunnel

The B34-90/DZ-34 Automatic Shrink Wrapping System provides any packaging line with a more efficient end-user product handling. This system is designed for unsupported products that require a 32 wide or less roll of film with a maximum roll diameter of 12. Features B34-90 SLEEVE WRAPPER Standard Features: Allen-Bradley PLC Low Film Indicator Standard Construction: Heavy duty welded tubular steel with plexiglass guarding Seal Head: 34”L x 16”H Teflon coated Electronic time/temperature controller Maximum temperature fluctuations of 2°C Air operated upper and lower sealing jaws on linear bearings Infeed: Variable speed DC driven conveyor Discharge: Variable speed DC driven conveyor Power Requirement: 220VAC, single phase, 60Hz Air Requirement: 8CFM @ 75PSI Production Rate: Up to 20+ packages/minute - DZ-34 SHRINK TUNNEL Standard Construction: Heavy duty welded steel frame with adjustable height Production Rate: Up to 20+ packages/minute Shrink Tunnel Chamber: 84”L x 34”W x 16”H Conveyor: Variable speed, 1/4 HP motor Steel rollers covered in silicone tubing Adjustable 1” diameter rollers or high temp polymer mesh belt Airflow: Variable speed, high velocity turbo blower Side baffles change flow pattern for varying types of package Power Requirement: 220/440VAC, 3 phase, 60Hz Air Requirement: Not required Options B34-90 SLEEVE WRAPPER Jaw Height Upgrade to 20” or 24” Motorized Film Jib Crane
