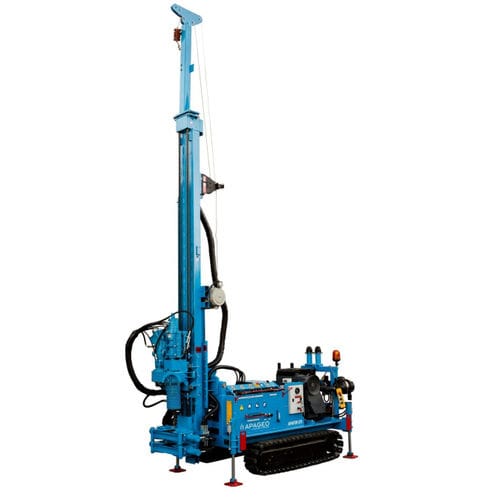

Core drilling drilling rig APAFOR® 570

micropilecrawlerrotary

SKID AND EQUIPMENT Mechanically welded steel frame mounted on a fixed rubber track (width 140 cm) 4 hydraulic stabilization feet Remote moving control Integrated Injection pump (several options, please consult us) MOTORIZATION Deutz Diesel engine 75 HP PERFORMANCES Standard : Rotation speed 0 to 550 rpm, maximum torque 290 DaN.m Reinforced torque : Rotation speed 0 to 300 rpm, maximum torque 505 DaN.m Pull up force 5500 DaN Moving speed 0 à 2,14 km/h OTHER PERFORMANCE AVAIBLE ON REQUEST APPLICATIONS Conventional and wireline coring Drilling with auger, rotary bits and Down The Hole Hammer Micropiling Penetration test DPSH / SPT (in option) DATA ACQUISITION (IN OPTION) ExploFOR® ApaDYN® APAFOR® 570 THE + Simple, powerful and robust drilling rig Designed for the most difficult conditions Versatile rigs able to perform conventional and Wireline coring, rotary and destructive drillings (rotary, DTH drilling and optionally out-of-the-hole drilling) Fully self-sufficient thanks to its numerous options. Rotation head with injection swivel and hydraulic head shifting for fast use of the Wireline and manipulation winches.
