Portable laser tracker iLT

ultracompactwirelessbattery-powered

Overview

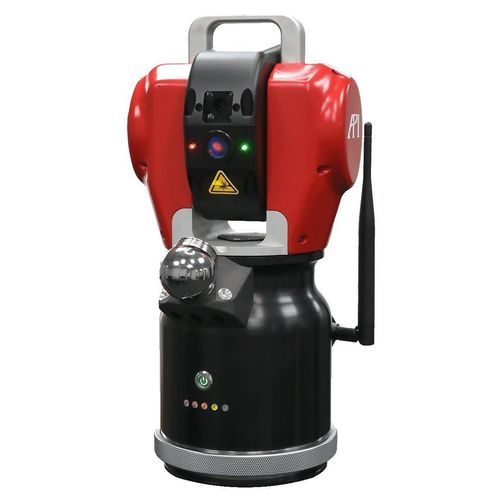

The API iLT Laser Tracker is a compact, portable integrated laser tracker engineered for high-precision 3D measurement, part inspection, alignment and quality control. Its single-unit design combines tracker, controller and battery for cableless operation on the shop floor or in the field.

Key features

• Compact, lightweight integrated unit (weight: 4.9 kg) for easy transport and rapid setup.
• Measurement ranges depending on model: iLT — 25 m / 50 m diameter; iLT X — 50 m / 80 m diameter.
• Wireless operation and integrated controller for cableless workflows and confined-space measurement.
• Battery operation: internal battery (typical 4 hours) extendable up to 8 hours with an external power pack; some configurations support up to 8 hours.
• Autolock beam re-acquisition within an approximate 30° field of view.
• Onboard environmental compensation (weather station) for temperature, pressure and humidity corrections to preserve measurement accuracy.
• Dual virtual level for rapid establishment of a gravity-referenced coordinate frame.

Accessories & complementary devices

• vProbe — hand-held wireless tactile probe for hidden features and tight areas.
• iScan 3D — handheld laser scanner for high-definition surface capture and feature extraction.
• Smart TRACK sensor — performance sensor for robotic calibration.
• Active Target™ (6DOF) — enables automated tracking and inspection of machine tools, CNC machines and industrial robots (available on iLT X).

Applications

• Quality control, part measurement and inspection
• Alignment and calibration of machines and robots
• Jigs, fixtures and tooling inspection
• Robotics calibration and adaptive control
• Reverse engineering and large-scale 3D scanning

Technical specifications

• Commercial denomination: iLT (product family)
• Laser technology: ADM / IFM
• Models and ranges: iLT — 25 m | 50 m (diameter); iLT X — 50 m | 80 m (diameter, model-dependent)
• Accuracy: iLT — ±(25 µm + 15 µm/m); iLT X — ±(20 µm + 5 µm/m)
• Weight: 4.9 kg (both iLT and iLT X)
• Wireless operation: yes (onboard wireless connectivity)
• SMR measurement: yes
• Hand-held probing (vProbe): supported on iLT X (iLT: not supported)
• Hand-held laser scanning (iScan): supported on iLT X (iLT: not supported)
• Integrated controller: yes (single integrated unit)
• Battery operation: integral battery (typical 4 hours) extendable up to 8 hours; configurations support up to 8 hours operation
• 6DOF Active Target: available on iLT X (iLT: not available)
• Environmental compensation: onboard weather station for temperature, pressure and humidity correction
• Ingress protection: IEC 60529 rated dust and water protection for operation in harsh environments
• Warranty: standard 2-year warranty (extendable up to 5 years)
