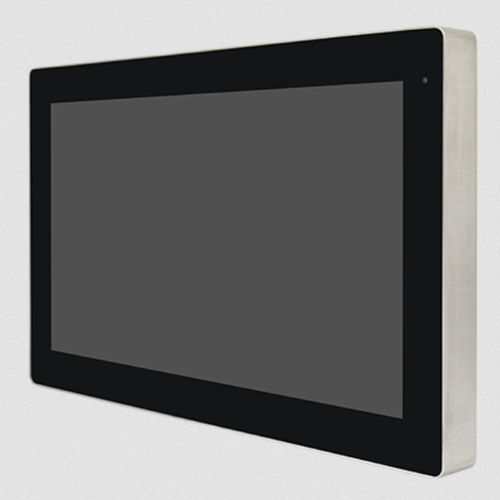

Stainless steel monitor PhanTAM-116APTFT-LCDcapacitive touch screenoutdoor
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, capacitive touch screen
- Applications
- outdoor, for food applications, for heavy-duty applications, for chemical applications, for hygienic applications, for pharmaceutical applications, for hazardous environments
- Display size
- 15.6"
- Resolution
- 1920 x 1080, 1366 x 768
- Mounting
- VESA mounting, wall-mount, desktop, arm-mounted
- Other characteristics
- fanless, HDMI, high-brightness, sunlight-readable, USB, stainless steel, VGA, waterproof, IP66, anti-corrosion, IP69K
Description
Ultra Slim Front Frame Design
Special Hygienic Bolts on Rear Case
M12 Connectors with Waterproof Cover
DC 24V Power Input
Specifications
IO Port
VGA 1 x M12 12-pin for VGA with waterproof cover
HDMI 1 x W.F. Micro-HDMI with waterproof cap
USB 1 x M12 8-pin for USB Touch with waterproof cover
OSD Control
Membrane OSD on the rear side
Power Connector 1 x M12 3-pin for DC power with waterproof cover
Power
Power Input DC 24V
Mechanical
Construction 304 Stainless steel chassis (default), 316 Stainless steel chassis (optional)
Dimensions 404.4 x 225.4 x 64.5 mm
Net Weight 4.85 kg
Environmental
Operating Temperature 0~50°C (WT1: -20~60°C for optional)
Storage Temperature -30~70°C
Humidity 10 to 90% @ 40°C, non- condensing
Certificate CE/FCC Class A
VIDEO
