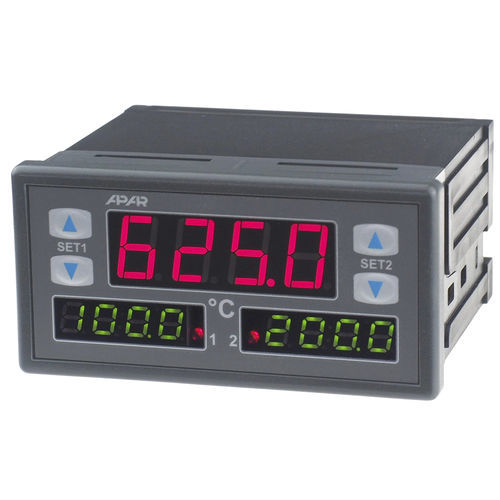

Temperature controller with LED display AR625

PIDprogrammableIP65

Temperature controller, 2 relay outputs/SSR, triple readout of measured value and setpoint, ON-OFF, PID, RAMPING, panel-type 96x48mm Product Description • microprocessor temperature controller with triple readout of the measured value and setpoint, designed for adjusting the fixed setpoint • high accuracy and resistance to interference occurring in industrial environments • universal thermometer input: • thermoresistance Pt100 • thermocouple J, K, S, B, R, T, E, N • digital, for AR182, AR183 probes • 2 control relay or SSR outputs • output 1: ON-OFF with hysteresis, PID, PID AUTO-TUNING • Output 2: ON-OFF with hysteresis • programmable input, range of indications and other parameters • option of protecting access to the configuration of parameters with password • option of blocking changes to the set values • software digital filtering • programmable operation characteristics (process controller, ramping) • triple LED display, digit height 14 and 2 x 7mm, brightness adjustment • signalling: • detected errors: messages on the display • relays activity: red LED's • measurement accuracy: • for Pt100 input: <0.2% of the measuring range ± 0.1 ° C • for thermocouple input: <0.3% of the measurement range ± 2.1°C • response time: 0.5÷2 seconds (depending on the digital filtering level) • ways to configure parameters: • from the IP65 plastic keyboard placed on the front panel of the device • through the PRG port (programmer AR955) and the free computer program ARSOFT-CFG (Windows 7/8/10), MODBUS-RTU
