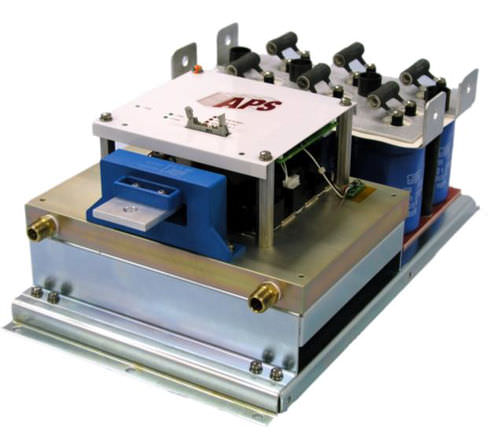

IAP1000D170H - Half-Bridge SixPac™ IGBT Integrated Assembly Description: The SixPacTM from Applied Power Systems is a configurable IGBT based power stage that is configured as a half-bridge for many high power applications. The IAP1000D170 can be used as a chopper for motor braking or two can be used in a full-bridge inverter application. Three IAP1000D170s can be used as a three-phase inverter. The semiconductor modules are mounted on a forced air-cooled or water cooled heat sink. The switching devices interface with a capacitor bank via a low inductance laminated bus. The gate drive board provides a simple user interface along with protection features including: overvoltage, overcurrent, undervoltage lockout, overtemperature, shoot-through, and short circuit protection. Depending on application characteristics, the SixPacTM is suitable for operation with DC bus voltages up to 1000 VDC and switching frequencies above 10 KHz. Features: - High performance IGBT inverter bridge - Integrated gate drive board with fault monitoring and protection - System status/troubleshooting LEDs to verify or monitor proper operation - Isolated, low level (50:1), analog feedback of DC bus voltage - Isolated gate drive power supplies - Low inductance laminated bus - Output current measurement and feedback - Superior short circuit protection and shoot through prevention
