manual deburring tool
FLEXICUT 12

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
manual deburring tool manual deburring tool - FLEXICUT 12
{{requestButtons}}

Characteristics

  • Operational mode:

    manual

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 15,000 rpm (94,247.8 rad.min-1)

Description

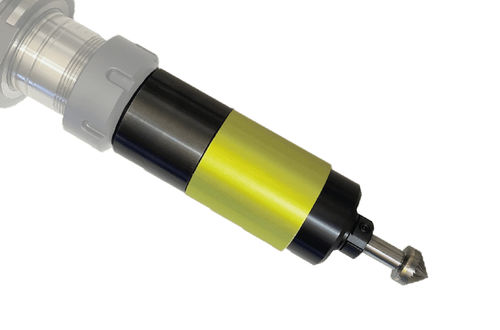

DEBURRING FOR CNC POWERED BY MAIN SPINDLE OF MACHINE TOOL – COMPLIANCE AXIAL
FLEXICUT 12
The FLEXICUT 12 removes in CNC-machines the burrs generated by the machining process.
The FLEXICUT 12 follows the undefined edges which are generated between machined and raw surface.

ADVANTAGES
Edge deviations of up to 6 mm can be compensated.
By changing the feed rate the chamfer width can be made bigger or smaller.
The FLEXICUT 12 is driven by the main spindle of the centre.
The FLEXICUT 12 is stored in the regular tool-rack.
Various types of milling cutters for different types of materials are available.
