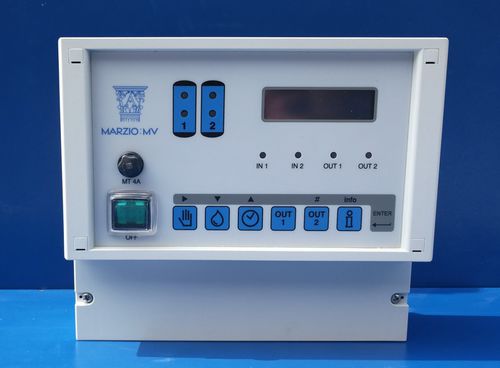

Microprocessor programmer MARZIO

wall-mountedcomponentfor valves

Controller for ionexchange plants – Menu-driven programming using a “two line” LCD display. – Text displayed in English, German, French, Italian or Dutch. – Adaptation to user specific requirements through integrated programmed options. – Simple to operate using easy to follow symbols. – Suitable for single and double column installations in routing, parallel or serial circuits. – Universaily implementable for a wide range of control valves, pilot valves and magnetic valves. – Capacity values programmable from 1 to 65535 m3 E or from 0.01 to 9999.99 m3. – Option for programming a service telephone number. – Regeneration/rinsing activation by time e interval, flow, external switching, real time clock or manual control. – Time delayed regeneration/rinsing. – Control of quantity dependent siuicing. – Extensive status request options using the INFO key: sluice control,regeneration/rinsing time, extra programm, filter capacity, total quantity of treated water, current input and outputs status, software version, start time interval, time delayed regeneration/rinsing, service telephon number,input and output programming. – Additional functions for service personnel: fast flow, filter exchange without regeneration/rinsing, standby filter regeneration/rinsing, time delayed regeneration, immediate regeneration/rinsing stop without program reset. – Selectable standard input function: water meter, regeneration/rinsing stop, regeneration/rinsing start or regeneration/rinsing agent monitoring. – Expandable with one input function and two output functions by the addition of extra print IF.
