Monobloc burner
dieselforced convectionheating

monobloc burner
monobloc burner
Add to favorites
Compare this product


Characteristics

Type
monobloc
Power source
diesel
Convection
forced convection
Applications
heating
Power

350 kW

Description

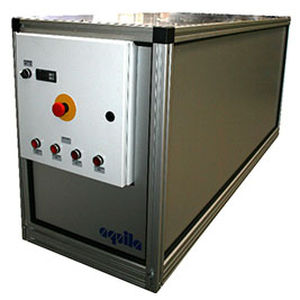

Oilburner unit consists of 4 burners in an aluminium cabinet. The burners are connected in parallel to minimize pressure loss over the heat spiral. The unit is centrally controlled from a joined operations panel but with separate safety systems for each burner. Specifications: Pressure:300 bar Water flow:120 l/min (Step less regulation of pressure and water flow) Diesel burner:4 pcs. Max. Temp:130°C Diesel tank:External Dimensions LxBxH:1675 x 515 x 640 mm Weight:350 kg Effect:350 kW Voltage:230V/12 Volts Advantages: From cold to hot very quickly Compact quality heating module Large amount of know-how and experience as back-up Extensive service programme Safety features with error indicator: Digital thermostat Flow switch for each burner Overheat safety for each burner Flame surveillance for each burner
