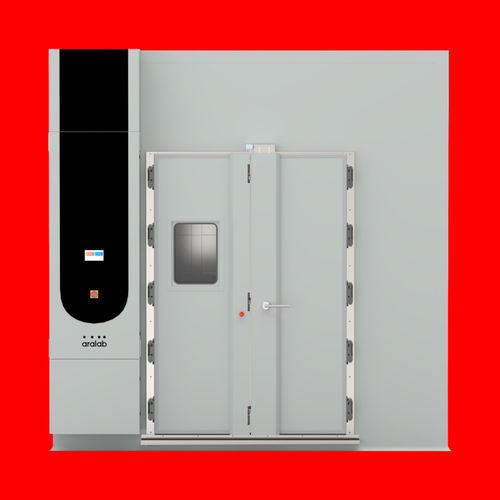

Climate chamber FITOCLIMA 44.000 EC30humiditytemperatureenvironmental
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature, humidity
- Test type
- environmental, psychrometrics
- Product applications
- air conditioner, for heat pump, for gas boiler
- Application domain
- for quality control
- Light source
- white LED, halogen
- Temperature
Min.: -30 °C
(-22 °F)Max.: 60 °C
(140 °F)- Interior length
3,500 mm
(137.8 in)- Interior height
2,800 mm
(110.24 in)- Interior depth
4,010 mm
(157.87 in)- External length
7,920 mm
(311.8 in)- External height
3,010 mm
(118.5 in)- External depth
4,210 mm
(165.75 in)
Description
Environmental test rooms, designed for the development and performance evaluation of air conditioners, gas boilers and heat pumps. Precise Indoor and Outdoor Environmental simulation and integration of enthalpic test tunnel.
Designed for the development and performance evaluation of air conditioners, gas boilers and heat pumps.
Simulating “Indoor” and “Outdoor” conditions with temperature, humidity and air flow independently controlled.
Available with ATEX protection features and accessories.
Related test standards:
DIN EN 14511 | DIN EN 14825 | DIN EN 16147
ISO 5151 | ISO 13253
JIS B 8615-1
ASHRAE 41.1 | ASHRAE 41.2 | ASHRAE 41.3 | ASHRAE 41.6
TECHNICAL SPECIFICATIONS AND PERFORMANCE
Aralab can customize dimensions and performances of the test chambers.
TEMPERATURE PRECISION
± 0,5ºC
TEMPERATURE UNIFORMITY
± 2,0ºc
HUMIDITY PRECISION
± 2%
HUMIDITY UNIFORMITY
± 2%
RH RANGE
20% to 90%
TEMPERATURE PRECISION
± 0,5ºC
TEMPERATURE UNIFORMITY
± 2,0ºc
HUMIDITY PRECISION
± 2%
HUMIDITY UNIFORMITY
± 2% RH
DIMENSIONS AND DRAWINGS
Aralab can customize dimensions and performances of the test chambers.
Systems can be supplied with enthalpic test tunnel.
