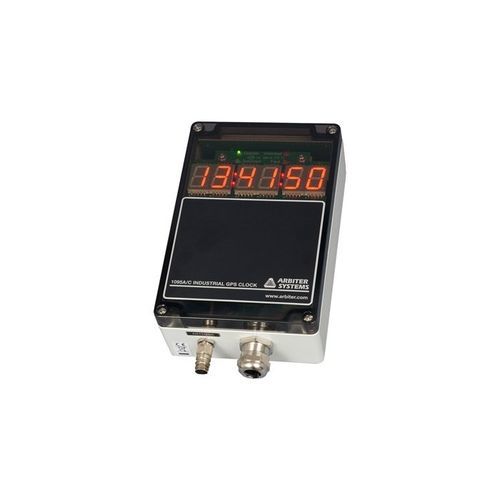

GPS clock 1095A/C

LEDdigital6-digit

Rugged, accurate and economical, the 1095A/C GPS Industrial Clock Module from Arbiter Systems®, Inc. is the engineer's choice when flexibility, precision and physical durability are required. The 1095A/C precision time clock is a low cost unit capable of driving common timing signals such as IRIG-B, 1PPS and RS-232 serial time codes, with < ± 100 ns typical accuracy. The compact, rugged enclosure can be mounted in multiple ways, making installation fast and secure. Ideal for outdoor applications, the 1095A/C is capable of performing when other units fail, operating between - 40 °C and 85 °C. Four configurable outputs support substantial drive capability, allowing a single unit to drive multiple loads in parallel. The 1095A/C maintains the real-time clock, almanac and ephemeris data powered by a back up battery in the case of power loss, reconnecting to the satellite signal in as little as 15 seconds. The built in Event Capture function means the unit records key events related to data received from the input options, with 100 ns resolution. Choose between the standard internal and optional external antenna to best suit your installation environment. Internal GPS antenna Rugged case for outdoor or demanding environments Accuracy < ± 100 ns typical; < ± 250 ns worst case Four terminal strip connector outputs, three high drive, one analog Two RS-232 ports One Form C (SPDT) fail-safe relay Battery or power source operated Versions A/C offer various interface options (see photos): External GPS antenna 1095A utilizes an opaque cover, optionally may be ordered with a "smoked' cover
