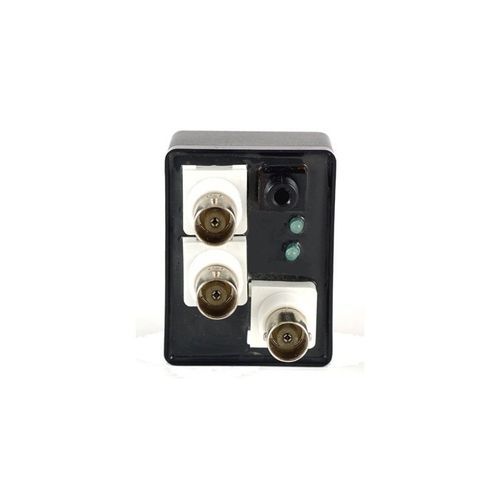

Isolated repeater 10887A

GPScurrent

While not technically part of the Copper IRIG-B Distribution System, Model 10887A is derived from it. It works with unmodulated IRIG-B and isolates the source from the end device. Limits the load current drain on the source. Drives mulitple loads in parallel. Has 75 mA of drive capability from each of the two outputs. Works with all Arbiter GPS satellite-controlled clock products. Output connectors can be either BNC or pluggable terminal strip. Optional DIN rail mounting. Ordering checklist: Required: Input Connector: Choose BNC or Pluggable Terminal Strip. Output Connector: Choose BNC or Pluggable Terminal Strip. Power Supply: Choose from the many listed under the Accessories tab. Note: Not all power supplies have DIN Rail mounting available. Optional (Must be chosen at time of order): DIN Rail Mounting for the 10887A module. Look on the Options tab for ordering information. DIN Rail Mounting for select power supplies. Look on the Accessories tab for power supply details.
