Compact linear gantry module MULTILIFT series

Overview
ARBURG’s MULTILIFT linear removal robots provide modular vertical and horizontal solutions for reliable, precise part extraction, insert handling and automation of injection‑moulding processes. Systems are configurable for different machine sizes and link directly with ALLROUNDER controls for simplified integration.

Benefits at a glance

• Intuitive: Graphic symbols and a consistent operating concept enable operators to program MULTILIFT systems with the same logic as ALLROUNDER machines.
• Efficient: Real‑time communication with the injection moulding machine reduces cycle overhead compared with classic EUROMAP setups.
• Selectable: Available in multiple designs and versions (V, H, SELECT) to match extraction direction, handling weight and installation constraints.
• Certified: CE‑certified production units delivered turnkey from a single source.

Features

• Dynamic mould‑entry axis (optional): Shorter mould‑entry times and additional gripper axes for varied rotational positions.
• Modularity: Multiple constructions and special versions (e.g. assembly over a moving mounting platen for vertical injection units).
• Low‑height solutions: MULTILIFT H variants and H 3+1 for constrained hall heights and micro‑injection cells.
• Real‑time machine integration: Simplified programming and cycle‑optimised handling via ALLROUNDER interface.

MULTILIFT programme

• MULTILIFT SELECT: Standardised vertical mould‑entry robot — compact, cost‑efficient and suitable for standard vertical removal tasks.

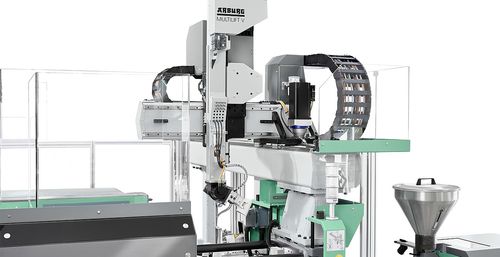

• MULTILIFT V: Longitudinal installation with a large working envelope for precise vertical handling of inserts and moulded parts.
• MULTILIFT H: Horizontal entry for low‑height halls, multi‑component vertical injection and installations with vertical peripheral equipment; available variants include H 3+1.

Sample components / typical applications

• Rotation‑angle sensors: vertical extraction and assembly of magnetic disc, base plate and protective cap using MULTILIFT V.
• Micro counting wheels: micro‑production cells with MULTILIFT H 3+1 handling very low part weights.
• Thermal cups: gentle removal with additively manufactured grippers for lightweight, foamed geometries on MULTILIFT SELECT.

Characteristics / Technical specifications

• MULTILIFT H 5 — Machine size: 270–920; Handling weight: 5 kg
• MULTILIFT H 3+1 — Machine size: 270–370; Main axis: 3 kg; Secondary axis: 1 kg
• MULTILIFT V 40 — Machine size: 630–1120; Handling weight: 40 kg
• MULTILIFT V 30 — Machine size: 570–1120; Handling weight: 30 kg
• MULTILIFT V 20 — Machine size: 370–920; Handling weight: 20 kg
• MULTILIFT V 10 — Machine size: 270–570; Handling weight: 10 kg
• MULTILIFT SELECT 16 — Machine size: 470–920; Handling weight: 16 kg
• MULTILIFT SELECT 8 — Machine size: 270–570; Handling weight: 8 kg
