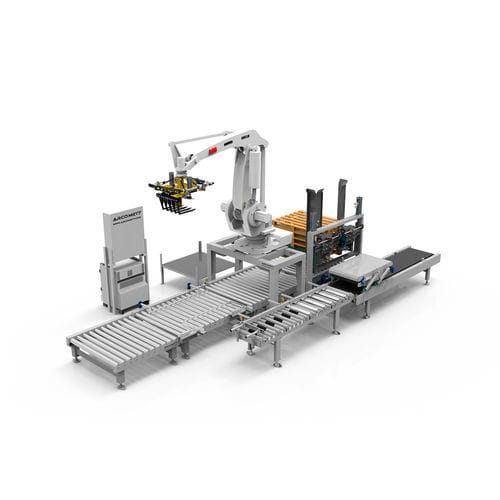

Robotic palletizer MEDIUM

industrialbagpaper bags

Industrial robots palletising and transporting pallets, boxes and bags depending on the gripper: Robot palletizers custom-built, for the handling: • All kinds of paper bags (valve, open rim), plastic, raffia… • Boxes, carafes,drums, various parts… • High production and possibility of palletizing to 2 destinations simultaneously. • It is settled on an adjustable bench. It Includes fences and security access. • Very compact cells and minimum space occupation. • It offers greater versatility and easy mosaics development thanks to the Arco Packaging software developed for the end-user. • Wide range of palletizing cells. • Low maintenance and easy to clean. • Avoid external pallet feeder, it is incorporated in own manipulation gripper. Vacuum gripper Manipulation of drums until 25 Kg. • Different dimensions of drums. • Double fixing system for drum. • Collection system for empty pallet. • Pneumatic drives with valve block at 24 Vcc. • Pneumatic supply at 6 bar of pressure and minimum flow 75 Nl/min. Gripper tray Industrial palletizing robot for palets, boxes and bags up to 40 Kg. • It allows to hold two bags simultaneously. • Allows to pick up a bag (gripper tray)/Allows to take two bags at the same time (gripper tray double). • System of manipulation and transport boxes. • Collection system for empty pallet. • Automatic collection system of cardboard. • Reduced height to leave the load. • Pneumatic drives with valve block at 24 Vcc. • Pneumatic supply at 6 bar of pressure and minimum flow 75 Nl/min.
