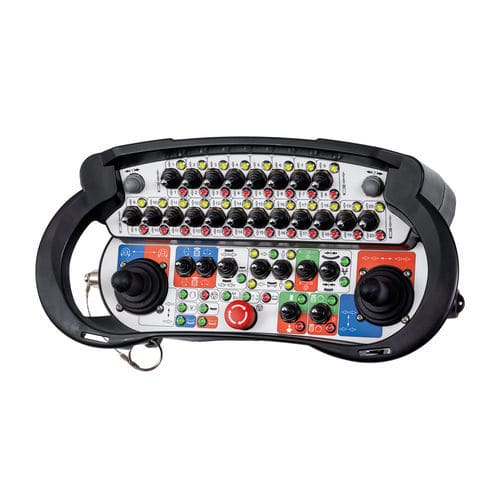

Radio control T7 EXjoystickwith toggle switchwith configurable buttons
Add to favorites
Compare this product
Characteristics
- Type
- radio
- Control interface
- with configurable buttons, joystick, with toggle switch, rotary switch, with rocker switch
- Product applications
- industrial, for hazardous areas, for boreholes
- Features
- with emergency stop, on/off
- Protection level
- IP65, rugged, IP67, explosion-proof
- Battery type
- rechargeable, Ni-MH
- Other characteristics
- safety, compact, rugged, Modbus, CANopen, with feedback, with LCD display, bidirectional, belt, custom-made, SAE J1939, PLd CAT3, small-size, SIL3, PROFIBUS, PLe CAT3, multifunction
- Certifications
- CE certified, FCC certified, IC certified, ISO
- Weight
2,000 g
(70.548 oz)- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Frequency
Max.: 869 MHz
Min.: 419 MHz
- Continuous working time
Max.: 10 h
Description
The T7 EX offers flexible control layout. Customers can add LED indicators or a graphic display. Optional wired control with power supply maximizes availability.
Certified according to:
• ATEX
• IECEx
• NEC 500/505
• UKEX
• MASC
• CCC
• MA
Technical Data:
• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 2000 g
• Dimensions (W/D/H): 370 x 185 x 170 mm
• Frequency range: 419–869 MHz
• Battery type: replaceable NiMH
• Operating time: up to 10 hours
• Range: >100 m
Options:
• STOP Cat. 3 PLd / SIL3
• 2.8“ graphic display
• LED indicators
• Tilt sensor
• Wired control
• Multi-operation
• Custom shut-off time
• Custom labeling
• Shoulder strap
• Waist belt
• Neck strap
Ergonomic design and flexible configuration
Robust construction with ergonomic design for precise operation. Joysticks, buttons, or switches can be customized. Optional displays or LEDs show status information.
Maximum functionality
IP65, -20 to +60 °C, range >100 m. Tilt sensor and flexible controls increase safety and comfort.
Versatile use
Ideal for chemical, machinery, logistics, or offshore. Durable, configurable, and reliable.
Certified according to:
• ATEX
• IECEx
• NEC 500/505
• UKEX
• MASC
• CCC
• MA
Technical Data:
• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 2000 g
• Dimensions (W/D/H): 370 x 185 x 170 mm
• Frequency range: 419–869 MHz
• Battery type: replaceable NiMH
• Operating time: up to 10 hours
• Range: >100 m
Options:
• STOP Cat. 3 PLd / SIL3
• 2.8“ graphic display
• LED indicators
• Tilt sensor
• Wired control
• Multi-operation
• Custom shut-off time
• Custom labeling
• Shoulder strap
• Waist belt
• Neck strap
Ergonomic design and flexible configuration
Robust construction with ergonomic design for precise operation. Joysticks, buttons, or switches can be customized. Optional displays or LEDs show status information.
Maximum functionality
IP65, -20 to +60 °C, range >100 m. Tilt sensor and flexible controls increase safety and comfort.
Versatile use
Ideal for chemical, machinery, logistics, or offshore. Durable, configurable, and reliable.
Catalogs
product data sheet T7 EX
1 Pages
