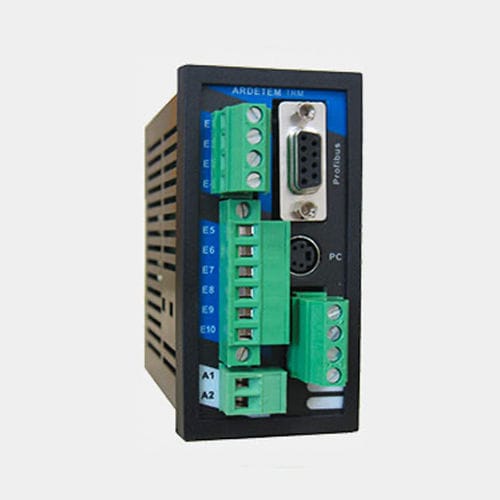

Signal transmission system TRM 4 PB

The TRM4 PB digital transmitter is especially designed for true RMS measurement, control and transmissions of all the parameters of AC electrical networks: voltage, current, power, energy frequency… Easy programmable with Supervision PC software. TECHNICAL SPECIFICATIONS For all types of AC electrical networks Fully programmable (CT, VT, … programmable) Input: In = 1 and 5A ; Un = 175 / 600Vac Cycle time: 40 ms Galvanic partition: IN / OUT / SUPPLY: 2kV 32 measurable parameters Profibus output – up to 12Mbauds Configurable with the software Supervision Connection DB9 female Universal power supply: 20 to 270 vac and 20 to 300 vdc Mini format: 48x96mm Depth: 112mm ; For DIN rail mounting
